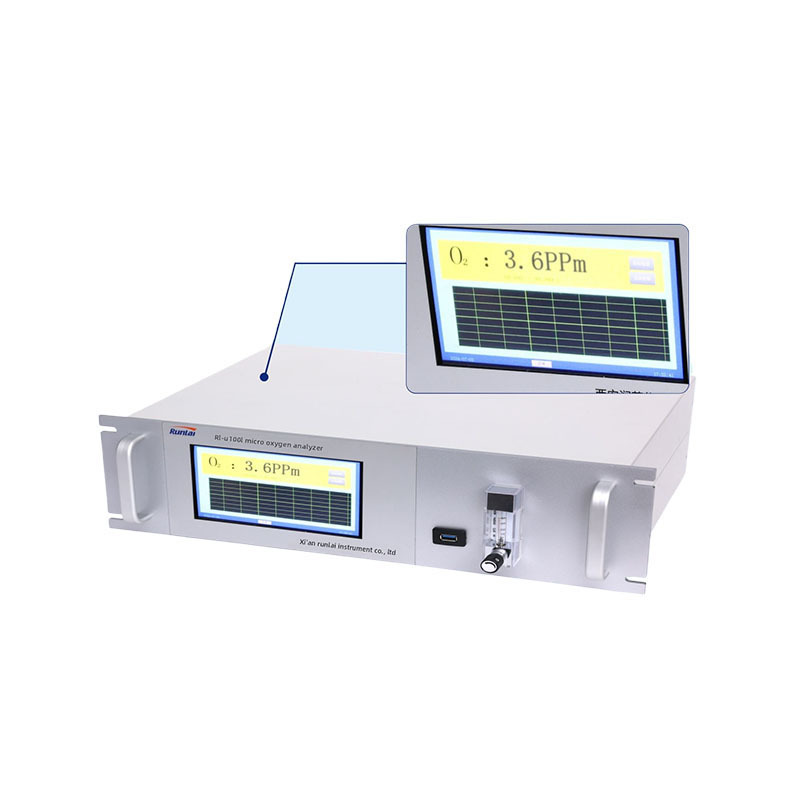

O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
Specifications
Target Gas :
Oxygen
Brand Name :
Runlai
Price :
Negotiable
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
type :
Oxygen Detector
Delivery Time :
appointed time
Alarm Mode :
Sound
Packaging Details :
Export Standard
Certification :
ISO certification
Payment Terms :
L/C、D/A、D/P、T/T
Accuracy Class :
High Accuracy
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1
Description

High Accuracy O2 Gas Analyzer with Electrochemical Sensor for Real-time Oxygen Monitoring

Product Specifications

Measurement Principle: Electrochemical

Measurement Range: 0～10/100/1000PPm (Range can be selected arbitrarily)

Accuracy: ≤±3%F.S (0～10PPm)

≤±2%F.S (0～100PPm)

≤±2%F.S (0～1000PPm)

Resolution: 0.1ppm/0.01ppm

Repeatability: ≤±1%F.S

Stability: Zero drift ≤±1%F.S/7d

Range drift ≤±1%F.S/7d

Response Time: T90≤10 S

Operating Voltage: 220-240VAC, 50\60Hz, 24VDC (Optional)

Digital Signal: Standard RS485 or RS232 communication port, enabling two-way communication with a computer

Analog Output: 4~20mA standard output signal, load resistance less than 500 ohms (0~10V optional)

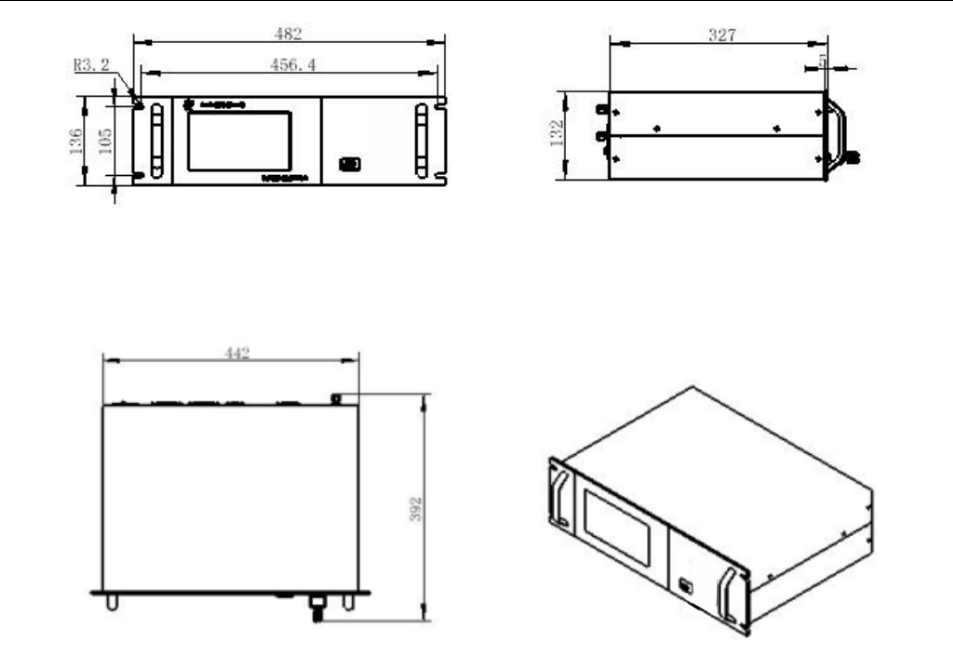

Dimensions: 482mm (Width) ×136 mm (Height) ×370 mm (Depth)

Opening Size: 456mm (Width)×105mm (Height)

Inlet and Outlet: φ6 ferrule connectors (Customizable)

Ambient Temperature: -25℃~+55℃

Ambient Humidity: ≤90%RH

Inlet Pressure: 0.05 MPa≤Inlet Pressure

Sample Gas Flow Rate: 400ml/min

Measurement Principle: Electrochemical

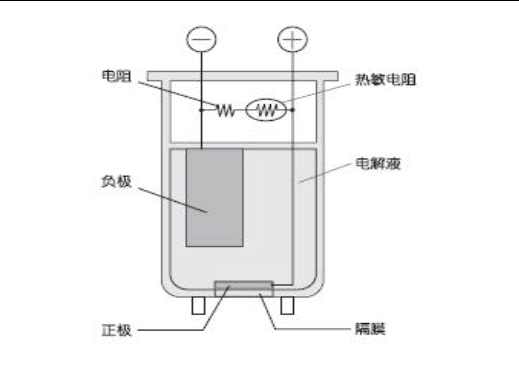

The electrochemical principle is a detection method that determines the oxygen content in sample gas by reacting the electrolyte in the battery with oxygen molecules in the sample gas. Essentially, an oxygen sensor is an oxygen cell, with an oxygen electrode as the cathode and an appropriate metal as the anode. Since oxygen requires the metal to discharge, the cathode of this type of oxygen cell is typically silver, the anode is lead, and an electrolyte is charged inside. The electrolyte is separated from the sample gas by a membrane, allowing oxygen to pass through the membrane into the sensor while preventing the electrolyte from leaking out.

O2 Gas Analyzer With Electrochemical Sensor For Real Time Oxygen Monitoring
Key Features & Applications
  • Various instrument parameters can be configured, calibrated, and tested using a fully Chinese-titled touch menu. Historical records and curves can be set according to time for quick operations;
  • Displays measurement values, historical curves, range, status, and parameter setting interfaces simultaneously;
  • Uses imported sensors featuring high precision and fast response;
  • Automatic scheduled storage function during unattended operation, with stored data available at any time;
  • Built-in temperature compensation to minimize the impact of sample gas temperature and environmental changes on measurement accuracy;
  • 64MB memory and 128MB FLASH with USB interface for convenient data storage;
  • Ethernet port available for wide-area network connection (optional);
  • Features a new type of gas flow stabilization system with advantages including advanced technology, high precision, fast response, stable performance, comprehensive functionality, easy operation, and continuous gas analysis process;

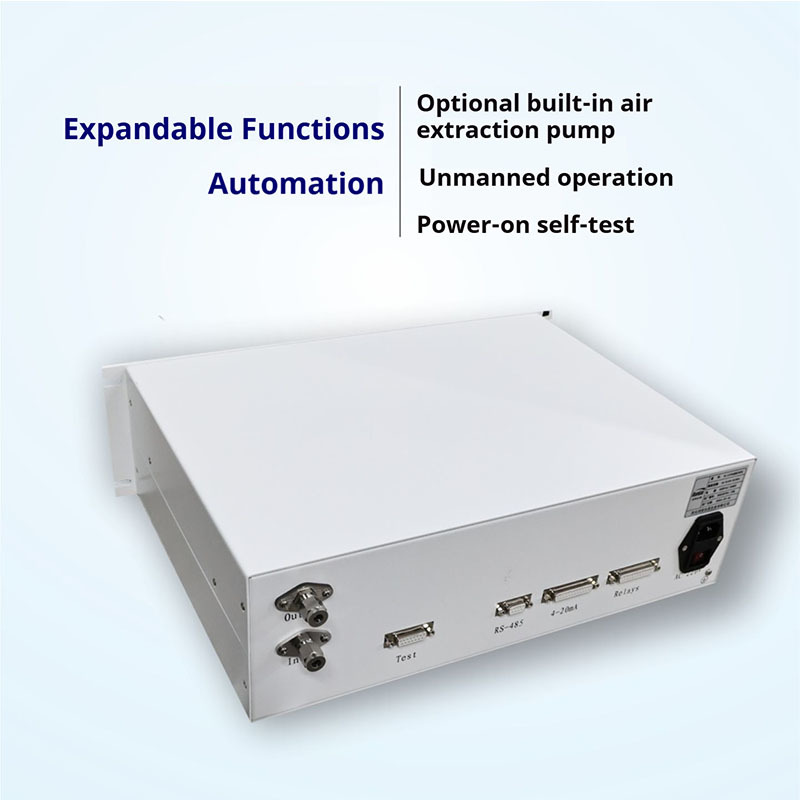

  • Built-in vacuum pump (optional).
  • Online analysis of protective gases in air separation nitrogen production, storage, chemical processes, high-temperature sintering furnaces for magnetic materials, the electronics industry, as well as oxygen content in the glass and building materials industries.
