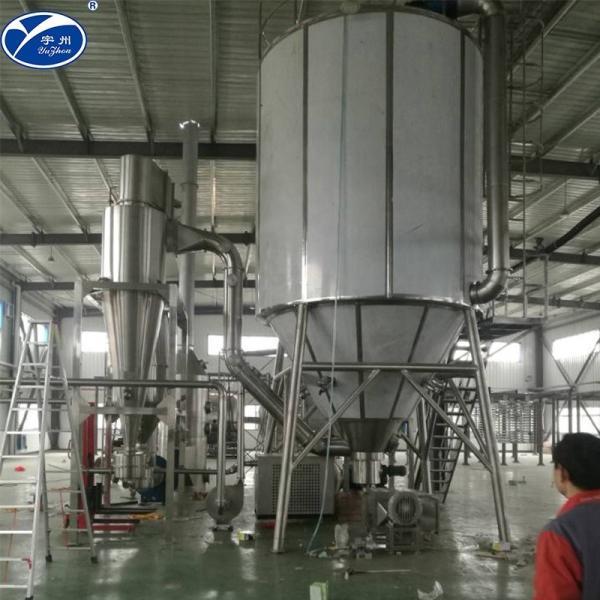

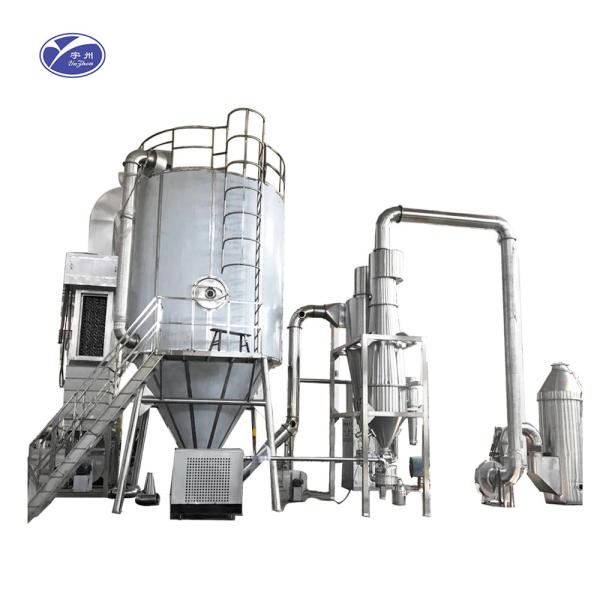

Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Food Industry Spray Drying Plant , SGS 15-50T/Hr Fluid Bed Drying Equipment
Specifications
Model Number :
ZLG
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
30-45 working days
Packaging Details :
shipping container
Name :
Horizontal ontinuous fluid bed dryer
Material :
SUS 304, SUS316L
Type :
fluid bed dryer
Fluid :
horizontal fluid bed
Heating source :
electricity,steam or natural gas
Packing :
40HQ container
Appllication industries :
food, chemical, pharmaceutical
Production period :
30-45 working days
Description

Vibrating Fluid Bed Dryer , Continuous Fluidized Bed Dryer For Food Industry

Vibration Fluidized bed dryer is a kind of universal drying equipment. A single-layer vibrating fluidized bed can dry the material vibration fluidized bed can also be dried. Especially materials with particularly high moisture content. It can be dried to the desired moisture content once at a time. Therefore, it is foreseeable that multi-layer vibrating fluidized bed has a wide application prospect.

Horizontal ontinuous fluid bed dryer is available in all industries, from heavy mining to food, fine chemicals and pharmaceuticals, to the sugar industry. It is a stationary unit with FD and ID pans, ranging from 15T / hr to 50T / hr Capacity and dust removal system. They provide an efficient method of drying relatively free flowing particles having a relatively narrow particle size distribution. Typically, fluid bed dryers operate in a flow mode through the bed, with hot air passing through the product perpendicular to the direction of travel. The dried product is discharged from the same part

FAQ before inquiry : we should consider the following things of the raw material that you are going to dry:

1- material name

2. material shape and size

3. initial moisture

4. final required moisture

5. drying temperature and heating source

6. site space and conditions

Technical Parameter

Size
Model		 A B C D E F Weight(kg)
ZLG3×0.30 3000 300 1350 900 430 1650 1250
ZLG4.5×0.30 4500 300 1350 900 430 1650 1250
ZLG4.5×0.45 4500 450 1550 950 430 1700 1670
ZLG4.5×0.60 4500 600 1650 950 430 1700 1670
ZLG6×0.45 6000 450 1650 950 430 1700 2100
ZLG6×0.60 6000 600 1700 1000 500 1700 2410
ZLG6×0.75 6000 750 1850 1000 600 1850 2840
ZLG6×0.9 6000 900 2000 1000 600 1850 3160
ZLG7.5×0.60 7500 600 1850 1000 600 1850 3200
ZLG7.5×0.75 7500 750 2000 1000 600 1850 3600
ZLG7.5×0.9 7500 900 2100 1000 600 1850 4140
ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190

Model Area of fluidized-bed
(M2)		 Temperature of inlet air
(oC)		 Temperature of outlet
(oC)		 Capacity to vapor
moisture
(kg)		 Vibration motor
Model Power Kw
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2ZLG
ZLG7.5×0.60 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2

* The above is the largest evaporation.

Fabrication of industrial fluid bed dryer body
