Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration
Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration
Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration
Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration
Specifications
Model Number :
CT-C-I
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
tray dryer/ hot air circulation drying oven
Material :
SUS 304, SUS316L
Type :
static drying
tray number :
24-216
Heating source :
electricity or steam
Packing :
40HQ container
Description

Professional Fruit And Vegetable Dehydrator Machine Cabinet Dryer For Food

Characteristics of hot air circulation industrial tray dryer 1. Hot air circulates in the oven, which has high thermal efficiency and saves energy. 2. Using forced ventilation, the air duct is provided in the oven, and the material is evenly dried. 3. The oven runs smoothly. Automatic temperature control, easy installation and maintenance. 4, a wide range of applications, can dry a variety of materials, is an ideal general drying equipment. Hot air circulation oven temperature: Hot air circulation oven has a wide range of applications, can dry a variety of industrial materials, is a general drying equipment, the general hot air circulation oven temperature range is room temperature ~ +250 ° C, high temperature type is room temperature ~ +500 ° C.

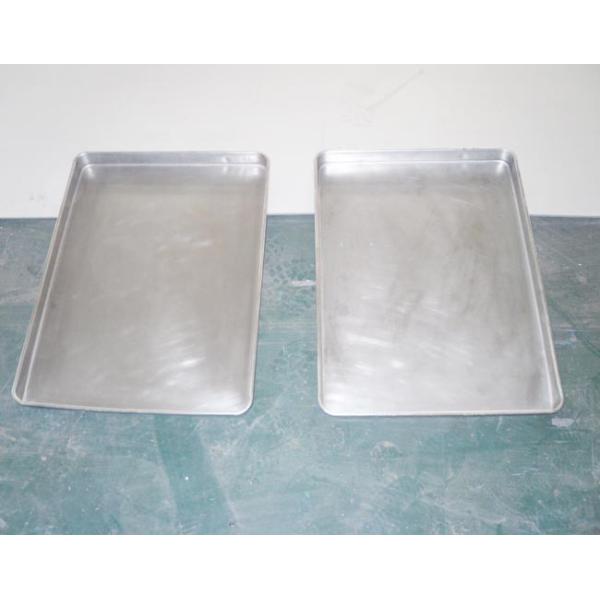

Stainless steel trays for load extract

Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration

Industrial for drying extract dryer application:
Hot air circulating industrial tray dryer for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.


1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.

2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.

3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
Heating source:electricity or steam
Heating temperature: 30-140℃ (use steam); 30-300℃ (use electricity)

Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration


Technical Specification:

Model Evaporation eara(sqm) Volume(mcbm) Drying capacity (kg/batch)

Steam consumption

(kg/h)

Heating powder

(kw)

Fan volume

(cbm)

 Fan Power (kw)

Dimension

(mm)

Weight

kg)
CT-C-0 7.1 1.3 60 10 9 3450 0.45 1380*1200*2000 820
CT-C-1 14.1 2.6 120 18 15 3450 0.45 2260*1200*2000 1580
CT-C-2 28.3 4.9 240 36 30 6900 0.45*2 2260*2200*2000 1800
CT-C-2A 28.3 4.9 240 36 30 6900 0.45*2 4280*1200*2270 1880
CT-C-3 42.4 7.4 360 60 45 10350 0.45*3 2260*3200*2000 2100
CT-C-3A 42.4 7.4 360 60 45 10350 0.45*3 3240*2200*2000 2210
CT-C-4 56.5 10.3 480 80 60 13800 0.45*4 4280*2200*2270 2800
CT-1 14.1 2.6 120 20 15 3450 1.1 2480*1200*2375 1220
CT-2 28.3 4.9 240 40 30 5230 1.5 2480*2200*2438 1530
CT-3 42.4 7.4 360 60 45 9800 2.2 3430*2200*2620 2110
CT-4 56.5 10.3 480 80 60 11800 3 4460*2200*2620 2300
