60 - 120Kg / Batch Fbd Electricity Or Steam Fluid Bed Dryer In Pharmaceutical
60 - 120Kg / Batch Fbd Electricity Or Steam Fluid Bed Dryer In Pharmaceutical
60 - 120Kg / Batch Fbd Electricity Or Steam Fluid Bed Dryer In Pharmaceutical
60 - 120Kg / Batch Fbd Electricity Or Steam Fluid Bed Dryer In Pharmaceutical
Specifications
Brand Name :
YUTONG
Model Number :
GFG-120
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
fluid bed dryer
Material :
SUS 304, SUS316L
Application :
powder, granule, pellets drying
Evaporation capacity :
50-120KG/HOUR
Heating source :
electricity or steam
Packing :
40HQ container
Temperature :
adjustable
Description

Water dispersible granule industrial fluid bed dryers for drying WDG pellets

GFG series high efficiency industrial fluid bed dryer

The main purpose
This equipment is suitable for the drying of granular materials in the pharmaceutical, chemical, food and other industries.
It is suitable for the drying of large granular materials, as well as the drying of powdery and viscous materials, and has a wide range of drying. working principle
After the air is purified and heated, the air blower enters the container through the perforated plate to establish fluidization, and the gas-solid and relative flow drying of the large area is continuously carried out. After the water is evaporated, the exhaust gas is taken away to achieve the purpose of drying the material. main feature
The material container is sealed by a cylinder top lift, which is quick, easy to operate and reliable.
Stirring in the bed is quick and convenient.
No dead angle, good fluidization, fast drying, thorough cleaning, no cross-contamination.
Sealing operation, no dust flying, in line with GMP regulations. Classification

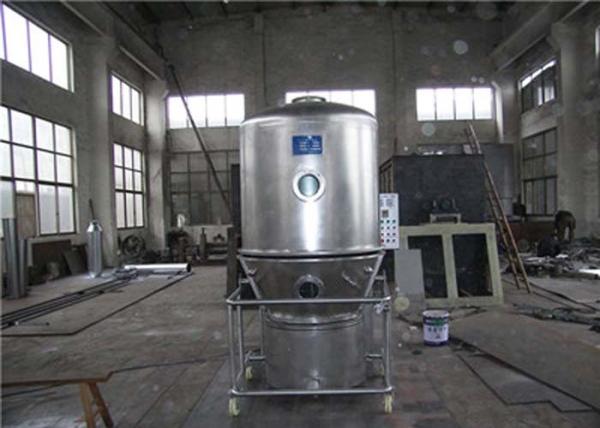

The machine is divided into two types: round (see picture) and square.

Application

For Food powder or granule drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades aspharmaceutical, food, light industry and chemical etc.

Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C 50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
