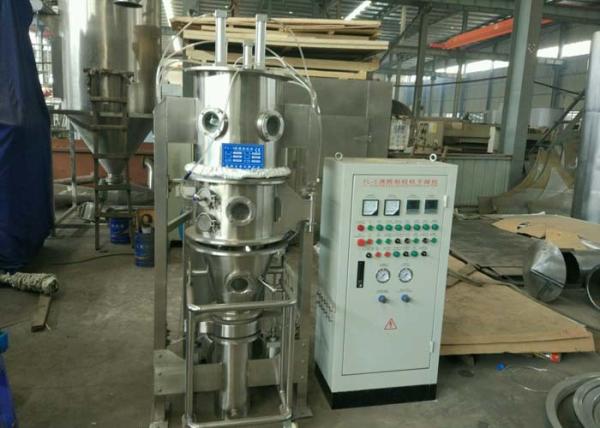

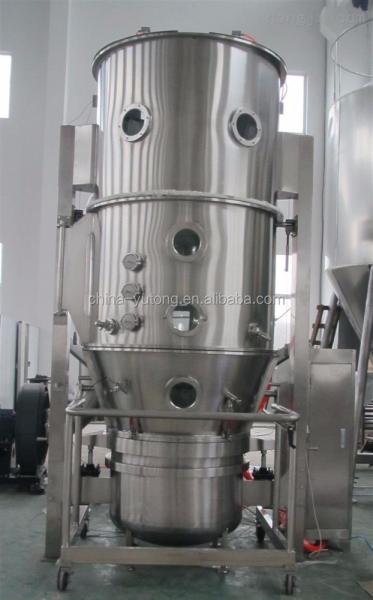

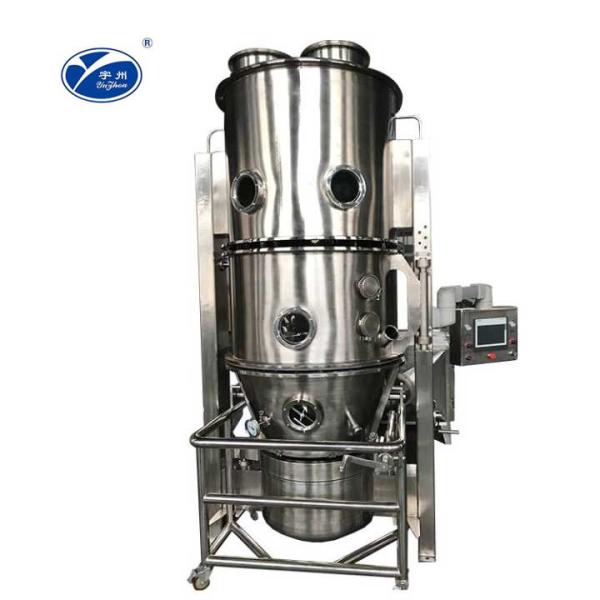

Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Stainless Steel 316L Fluid Bed Dryer Granulator For Pharma
Specifications
Model Number :
FL
Certification :
SOS SGS ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD 8990-98769 per unit
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500units per year
Delivery Time :
25 working days
Packaging Details :
export wooden case or container
Name :
fluid bed dryer granulator
Model :
FL
Function :
granulation and drying
Spray :
middle spray
Granule size :
0.5-1.5mm
Granule type :
incompact
Capacity :
batch by batch
Description

Stainless Steel 316L Fluid Bed Dryer Granulator For Food And Pharma GMP Standard

Fluid bed dryer granulator Scope of Application

Medicine granulating and drying
Granulating: granule of tablet, quick solved drink, granule used for capsule Coating: granule, pill protection layer , formulated color , slow release, film,coating for intestines solving
Foodstuff granulating and coating
Sugar, coffee, cocoa powder, cream,powder syrup, amino acid, avoring,puffed food
Granulating for pesticide,plgment,dyestuff
Drying for powder,granule,block raw materials

Characteristics of fluid bed dryer granulator
Because of powder granulating, the uidity can be improved and the powder dust can be reduced.
Because of powder granulating, the solubility is improved
The procedures of mixing, granulating and drying can be finished in one step(granulating through one step)
Because the atomizer for adhesive adapts multi-uid spray lance, the particle is uniform and the percent of pass of finished products is raised greatly .
There is no dead corner in equipment. It is quick and convenient to feeding and discharge.
The equipment is clean through washing.

Technical Parameter

Specification 3 5 15 30 45 60 90 120 150 200 300 500
Volume(L) 12 22 45 100 155 220 300 420 530 660 1000 1500
Amount to be treated(kg/per time) 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan(kw) 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Consume of steam 0.4MPa(kg/h) 12 23 42 70 99 141 169 211 251 282 366 451
Consume of compressed air m3/min 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db(A) (fan is installedseparately)≤75
Overall dimension(m) 1.0x
0.55x1.8		 1.2x
0.6x2.1		 1.25x
0.9x2.1		 1.6x
0.9x2.3		 1.65x
1.1x2.4		 1.85x
1.25x3		 1.85x
1.25x3		 2.2x
1.65x3.1		 2.27x
1.72x3.1		 2.34x
1.9x3.5		 2.8x
1.9x3.8		 3x
2.55x4.2

Note:Model FG can not be equipped with granulating part.
