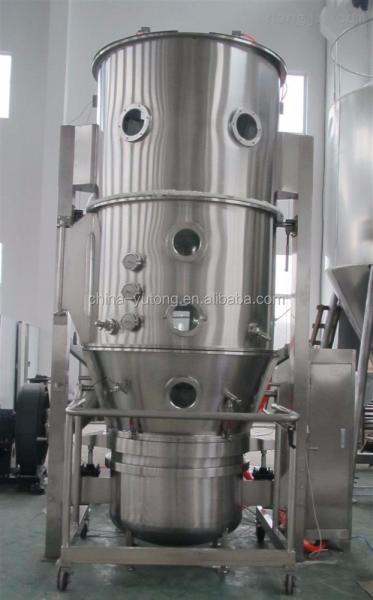

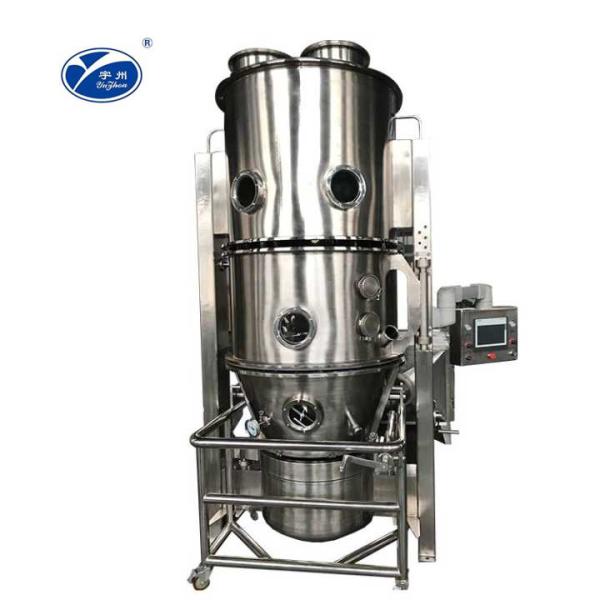

Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Electric Heating 5.5kw Fluid Bed Dryer Granulator 380V / 220V
Specifications
Model Number :
FL
Certification :
SOS SGS ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD 8990-98769 per unit
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500units per year
Delivery Time :
25 working days
Packaging Details :
export wooden case or container
Name :
fluid bed dryer granulator
Model :
FL
Function :
granulation and drying
Spray :
middle spray
Granule size :
0.5-1.5mm
Granule type :
incompact
Capacity :
batch by batch
Description

Electric Heating Fluid Bed Dryer Granulator 380v / 220 V 5.5kw Energy Saving

Fluid bed dryer granulator Scope of Application

Drug granulation and drying
Granulation: tablet granules, instant beverages, granule coating with capsules: granules, pill protection layer, formula color, sustained release agent, film, enteric solvent coating
Food granulation and coating
Sugar, coffee, cocoa powder, cream, powder syrup, amino acids, aroma, puffed food
Granulation insecticide, powder, dye
Dry powder, granules, bulk material

Characteristics of fluid bed dryer granulator
Due to powder granulation, acidity can be improved and dust can be reduced.
Solubility improved due to powder granulation
The steps of mixing, granulating and drying can be done in one step (one-step granulation)
Since the adhesive atomizer is adapted to the multi-purpose spray gun, the particles are uniform and the throughput of the finished product is greatly improved.
The device has no dead ends. Feeding and discharging are quick and easy.
The equipment is clean.


Technical Parameter

Specification 3 5 15 30 45 60 90 120 150 200 300 500
Volume(L) 12 22 45 100 155 220 300 420 530 660 1000 1500
Amount to be treated(kg/per time) 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan(kw) 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Consume of steam 0.4MPa(kg/h) 12 23 42 70 99 141 169 211 251 282 366 451
Consume of compressed air m3/min 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db(A) (fan is installedseparately)≤75
Overall dimension(m) 1.0x
0.55x1.8		 1.2x
0.6x2.1		 1.25x
0.9x2.1		 1.6x
0.9x2.3		 1.65x
1.1x2.4		 1.85x
1.25x3		 1.85x
1.25x3		 2.2x
1.65x3.1		 2.27x
1.72x3.1		 2.34x
1.9x3.5		 2.8x
1.9x3.8		 3x
2.55x4.2

Note:Model FG can not be equipped with granulating part.
