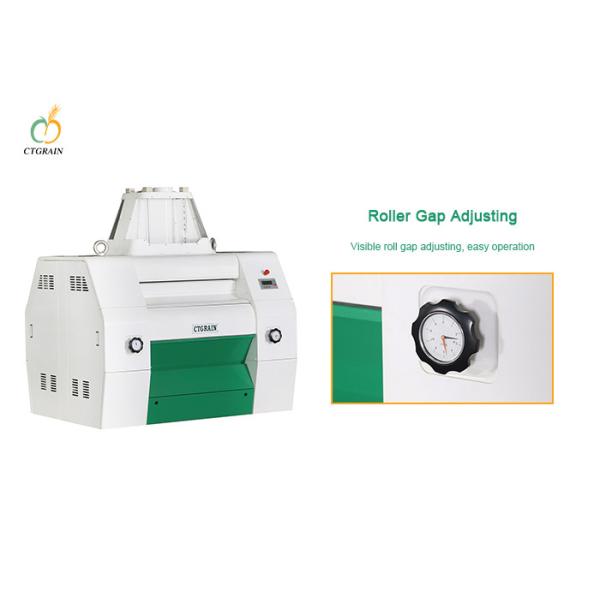

Electrical Roller Grain Mill 1810*1526*1955mm Grain Milling Equipment
Electrical Roller Grain Mill 1810*1526*1955mm Grain Milling Equipment
Specifications
Brand Name :
CTGRAIN
Model Number :
MME
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
Electrical Roller Grain Mill MME100 Grain Milling Equipment
Usage :
Flour milling
Raw material :
Wheat Maize Corn Rice flour
Application :
Flour milling
Color :
Customized
Type :
Grain Processing Equipment
Material :
Corn Wheat and Grains
Description

Electrical Roller Grain Mill MME100 Grain Milling Equipment

Roller Mill Specifications:

Name Electrical Roller Mill
Type MME100*25*2
Length

1000mm
Diameter 250mm
Weight 3250
Shape Size 1810*1526*1955

Roller mill Features:

Horizontal roller configuration and servo-feeder contribute to a perfect grinding performance.

Automatic operation system makes it possible to display or modify the parameter very simply.

All the roller mills can be central controlled (e.g. engaged/disengaged) through PLC system and in control room center.

Grinding roller:

High-quality metal is made by centrifugal process, with high strength and good wear resistance.

Dynamic balance deviation value ≤ 2g.

Radial runout <0.008 mm.

The shaft end is made of 40Cr steel with hardness HB248-286.

Roller Mill Working principle:

After MME series Electrical Roller mill starting up, the rollers begin to rotate. The distance of two rollers is wider. During this period, there is no material fed into the machine from inlet. When engaging, the slower roller moves toward faster roller normally, meanwhile, the feeding mechanism begins to feed material. At this time, the related parts of feeding mechanism and roller gap adjusting mechanism begin to work. If the distance of two rollers is equal to working roller gap, the two rollers engaged and begin to grind normally. When disengaging, the slower roller leaves from faster roller, meanwhile, the feeding roller stops feeding material.

Electrical Roller Grain Mill 1810*1526*1955mm Grain Milling Equipment
