Corn Flour Roller Mill Diameter 300mm Grain Milling Equipment
Corn Flour Roller Mill Diameter 300mm Grain Milling Equipment
Specifications
Brand Name :
CTGRAIN
Model Number :
MME
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
Roller Mill For Corn Flour 300 Diameter Grain Milling Equipment
Usage :
Flour milling
Raw material :
Wheat Maize Corn Rice flour
Application :
Flour milling
Color :
Customized
Type :
Grain Processing Equipment
Material :
Corn Wheat and Grains
Description

Roller Mill For Corn Flour 300 Diameter Grain Milling Equipment

Roller Mill Specifications:

Name Electrical Roller Mill
Type MME100*25*2
Length

1000mm
Diameter 250mm
Weight 3250kg
Shape Size 1810*1526*1955mm

Roller mill Features:

Roller is made of centrifugal cast iron, dynamically balanced for a long working span.

Level Sensor:

Level sensor is controlled by infrared. Sensitive flow control, accurate feeding of feed roller avoid the frequent engage and disengage of roller and extend the service life of roller.

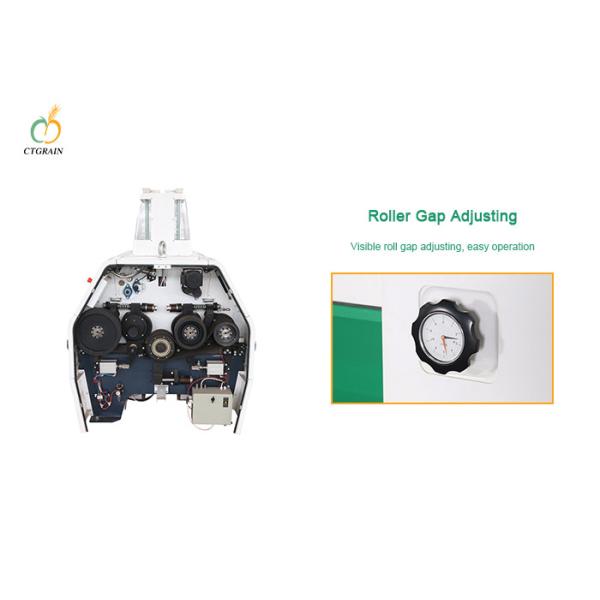

Roller Gap Adjusting:

Visible roll gap adjusting, easy operation.

Grinding roller:

High-quality metal is made by centrifugal process, with high strength and good wear resistance.

Dynamic balance deviation value ≤ 2g.

Radial runout <0.008 mm.

The shaft end is made of 40Cr steel with hardness HB248-286.

Roller Mill Working principle:

After the roller mill is started, the two rollers start to rotate. At this time, the distance between the two rollers is relatively wide. In this state, the material has not yet entered from the inlet. When the two rollers are engaged, the slow roller moves at a constant speed to the fast roller, and the feeding mechanism starts to convey the material. at the same time, the relevant parts for feeding and grinding roller gap adjustment begin working. When the two grinding rollers reach a certain working gap, the rollers start grinding normally. When the grinding roller is separated, the slow roller leaves the fast roller, and the feeding mechanism stops conveying materials.

Corn Flour Roller Mill Diameter 300mm Grain Milling Equipment
