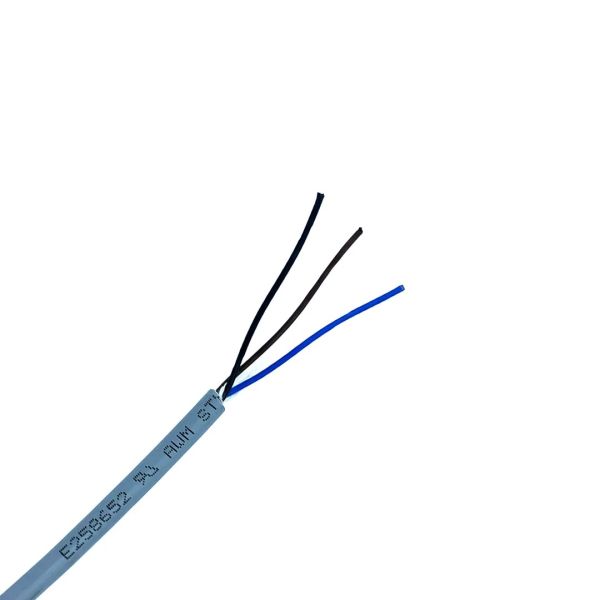

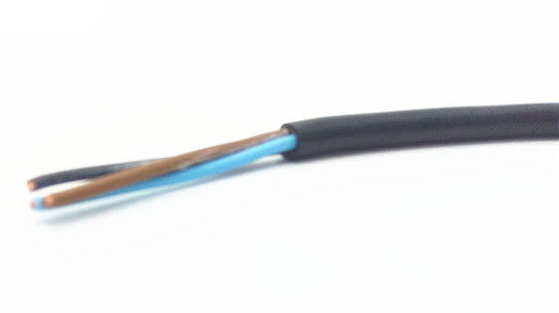

UL2464 Tinned Copper Stranded 1P×28AWG+2C×20AWG+ADB with PVC/PE Insulation PVC Jacket

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

UL758 -E258652-20060111-CertificateofCompliance-1....

UL758-E258652-20060111A-CertificateofCompliance(2)...

UL758-E258652-20110513B-CertificateofCompliance (3...

Insulation:PVC,PE
Conductor : Tinned copper stranded
Construction

Insulation: A.white&green B1.red B2.black

Jacket Color : Per request

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:UL2464
RoHS

Technical data
Rated voltage:300V
Rated Temperature: 80℃

Max.conductor DC resistance(20℃):A:239Ω/km B:36.7Ω/km

Dielectric Strength AC:2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Flame retardance
Flexible
