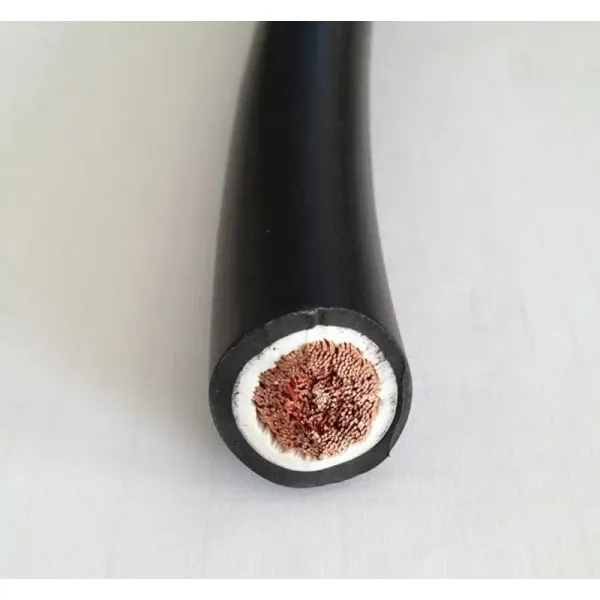

1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Specifications
Certification :
ISO9001, CE, CCC, RoHS
MOQ :
3,000
Price :
0.5
Conductor Material :
Stranded, tinned or bare copper
Conductor Standard :
IEC60228 CL5
Insulation Material :
Special PVC
Sheath Material :
PUR
Rated Voltage :
1000 V
Rated Temperature :
-40~80ºC
Flame Standard :
IEC600332-1-3, FT1, FT2
Oil Resistance :
60 ºC or 80 ºC Oil
Voltage Test :
AC 3.5kV/1min
Flex Bending Radius :
7.5x cable Ø
Fixed Bending Radius :
4x cable Ø
Halogen-free :
Yes
Low Temp Flexibility :
Up to -40°C
Pressure Resistant :
Yes
Cut/Scratchproof :
Yes
Description
1000V Flexible PVC Insulated Single Core Copper Wire Cable
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Construction Specifications
  • Conductor: Stranded, tinned or bare copper, IEC60228 CL5
  • Insulation: Special PVC
  • Sheath: PUR
Compliance Standards
  • International: UL758, UL1581, UL2556
  • RoHS Compliant
  • REACH Compliant
Technical Data
Rated Voltage 1000 V
Rated Temperature -40°C to 80°C
Flame Rating IEC600332-1-3, FT1, FT2
Oil Resistance 60°C or 80°C Oil
Voltage Withstand Test AC 3.5kV/1min
Minimum Bending Radius
Flexing Application 7.5x Cable Diameter
Fixed Installation 4x Cable Diameter
Key Properties
  • Halogen-free construction
  • Flexible at low temperatures down to -40°C
  • Resistant against pressure and impact
  • Overroll steady performance
  • Cut and scratchproof design
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
1000V Flexible PVC Insulated Single Core Copper Wire Cable 1000V Flexible PVC Insulated Single Core Copper Wire Cable
Certifications
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Production Process
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Shipping & Logistics
1000V Flexible PVC Insulated Single Core Copper Wire Cable
Frequently Asked Questions
Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you hold?
A: We maintain UL, CE, 3C, Dekra, CQC, TUV, RoHS, Reach, and ETL certifications.
Q: Can we receive samples before ordering?
A: Yes, we provide samples for evaluation prior to order placement.
Q: What is your typical lead time?
A: Standard orders are completed in 2-3 weeks, with 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling before mass production and final inspection before shipment.
