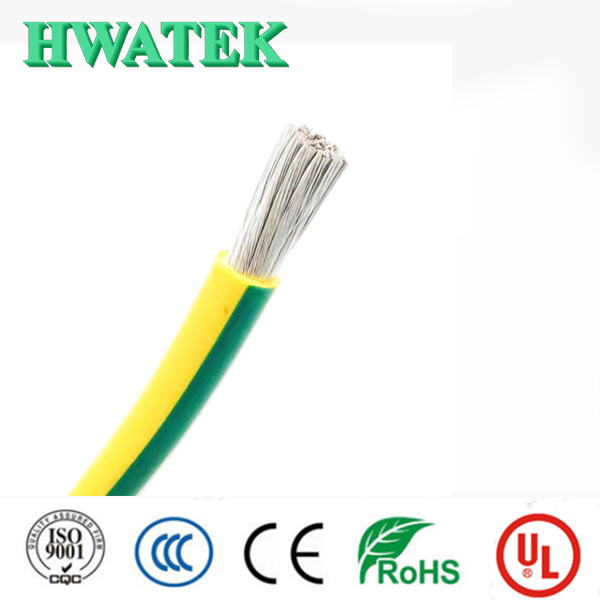

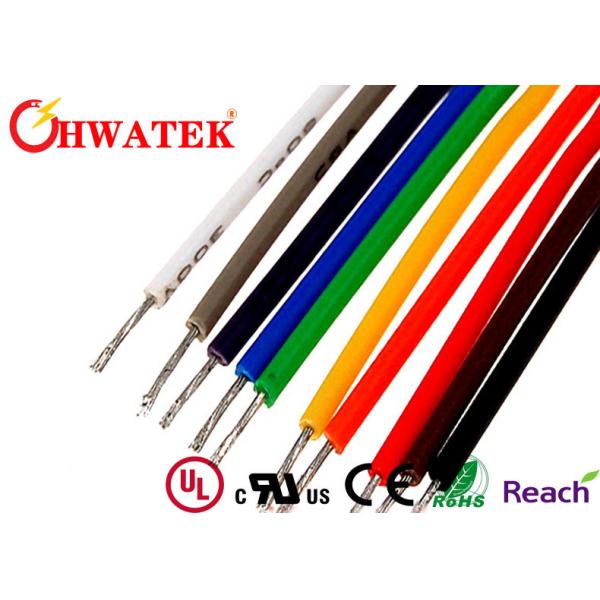

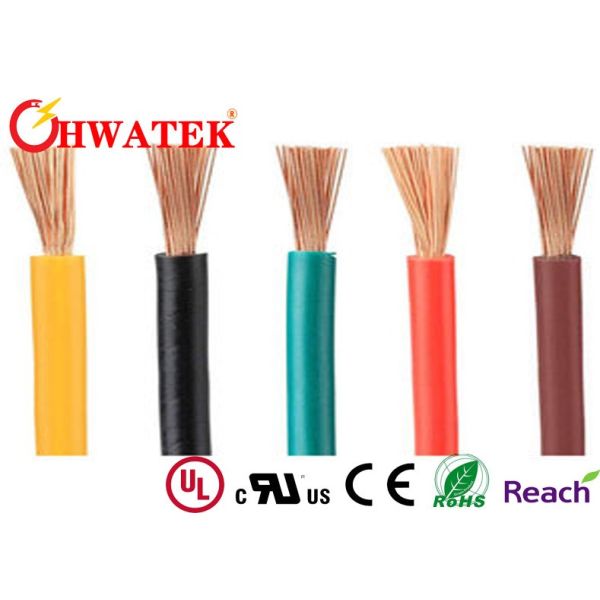

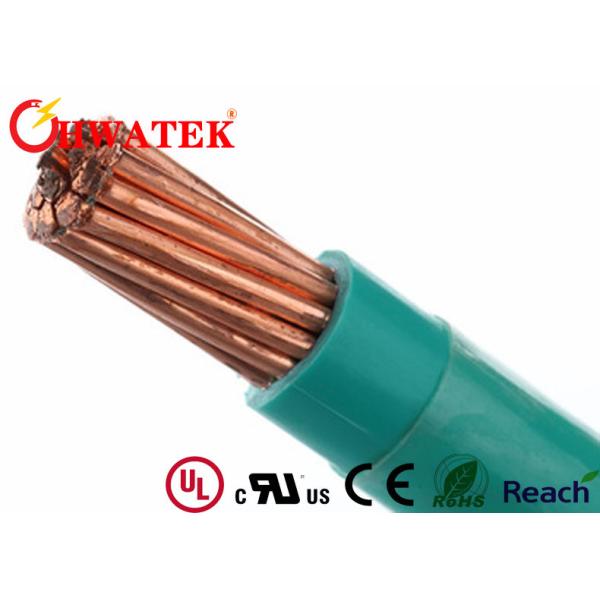

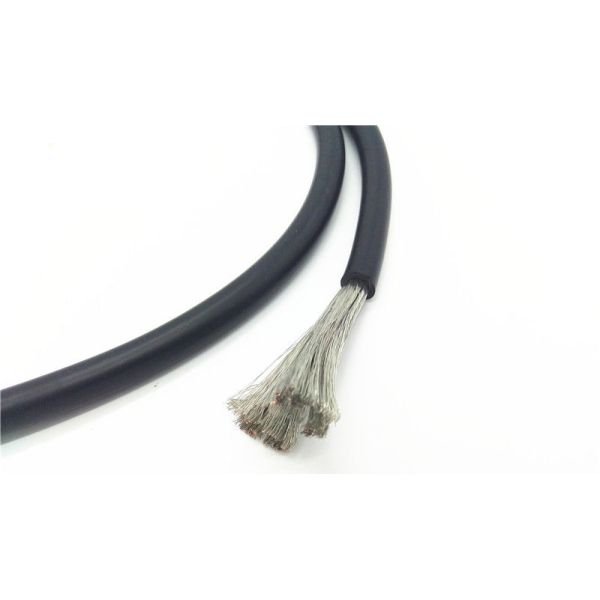

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
Specifications
Model Number :
UL1568
MOQ :
1000m
Brand Name :
Hwatek
Certification :
RoHS
Place of Origin :
China
Price :
To be negotiated
Payment Terms :
T/T, L/C, Western Union,MoneyGram
Supply Ability :
100km per day
Delivery Time :
3-4 weeks
Packaging Details :
Packed in rolls or reels
Conductor :
Bare copper stranded
Insulation :
PVC
Application :
Industrial,comsumer electrics,etc
Packing :
Packed in reels
Voltage :
150V
HWATEK :
HT2601778
Flame rating :
VW-1
Description

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

Construction
Conductor Bare copper stranded
Cross section 28AWG
Construction 42/0.05mm
Strand Dia.(Ref) 0.37mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 0.90±0.08mm
Insulation colour Per request

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%


UL62 Certificate.pdf

Insulation:PVC
Conductor : Bare copper stranded

Insulation color: Per request

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:UL1568
RoHS

Technical data
Rated voltage:150V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):239Ω/km

Dielectric Strength AC:1.5KV/1min

Mechanical Performance
Insulation
Material PVC
Tensile strength ≥10.3MPa
Elongation ≥100%
Aged condition 113±1℃×168h
Percent of original tensile strength ≥70%
Percent of original elongation ≥65%

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC InsulationUL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC InsulationUL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC InsulationUL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Certificates
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

Production Progress

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

Shipping
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
