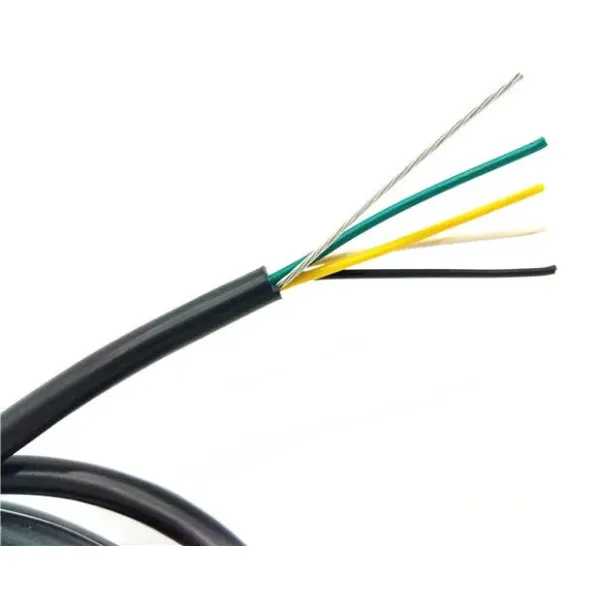

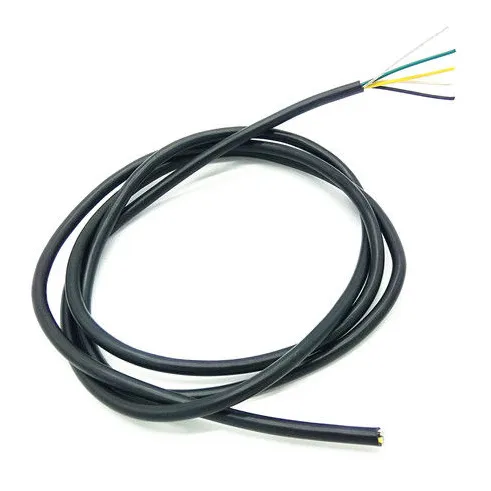

UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Specifications
Brand Name :
HWATEK
Model Number :
UL20855
Certification :
ISO9001, CE, CCC, RoHS
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000KM/ month
Delivery Time :
4 Weeks
Packaging Details :
Reels or rolls
Model NO. :
UL20855
Sheath Material :
FRPE
Insulation Material :
PP
Material Shape :
Round Wire
Qty/Roll :
305m,610m or as Request
Rated Temperature :
80ºC
Rated Voltage :
30v
Conductor Size :
26AWG
Conductor Type :
Tinned or bare copper, stranded or single
Max Conductor Resistance :
150Ω/km
Spec :
HT2504652
Description
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Product Specifications

Conductor Tinned copper stranded
Cross section 5C×26AWG
Construction 7/0.16mm
Strand Dia.(Ref) 0.48mm
Insulation PP
Nom.Thickness 0.20mm
Min.Thickness 0.18mm
Insulation Dia. 1.00±0.08mm
Insulation colour 1.red, 2.black 3.blue 4.green 5.white
Material Al-mylar,face out,≥25%
Cabling 5C×26AWG+A
Jacket FRPE
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 4.50±0.15mm
Colour Yellow pantone 101C

UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Products are used in industrial control system, household appliances, office system, and consumer electronics.
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Key Features
  • Application: Internal wiring or external interconnection of electronic equipment
  • Application standard: UL758 & UL1581 & CSA C22.2 No.210
  • Excellent insulation performance, stable chemical properties
  • Pass UL VW-1 and CSA FT1 vertical flame test
  • Heat resistance, anti-acid and environmental protection
Construction
  • Tinned or bare copper, stranded or single conductor, 30-4/0AWG
  • PVC insulation
  • Two or more single-core wire are twisted
  • Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
  • PVC jacket UV resistant
Technical Parameters
  • Rated temperature: 80ºC
  • Rated Voltage:30 V
Product Specifications Table
Electric Performance
Rated Temperature 80℃
Voltage rating 30V
Max.conductor DC resistance(20℃) 150Ω/km
Dielectric Strength AC 0.5 KV/min

Mechanical Performance
Jacket
Material FRPE
Tensile strength ≥8.27MPa
Elongation ≥100%
Aged condition 113±1℃×168h
Percent of original tensile strength ≥75%
Percent of original elongation ≥75%

UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Certificates
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Production Progress
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Shipping
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Frequently Asked Questions
Q: What can you supply?
A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
