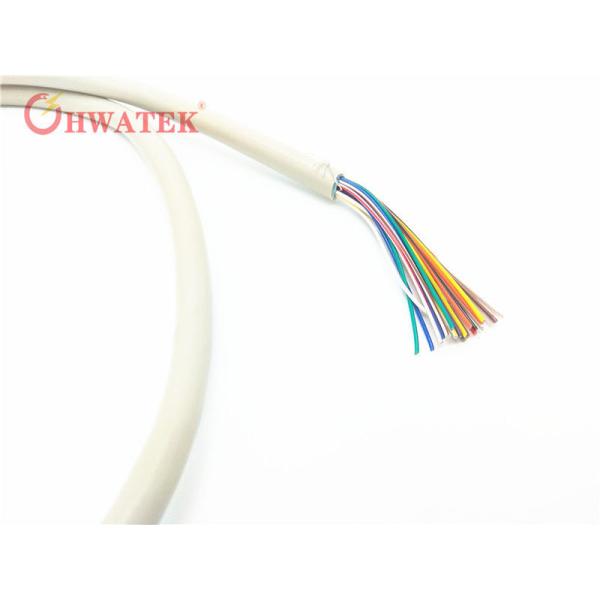

UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
Specifications
Brand Name :
HWATEK
Model Number :
UL2725
Certification :
ISO9001, CE, RoHS
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000KM/ month
Delivery Time :
4 Weeks
Packaging Details :
Reels or rolls
Conductor Material :
Tin plated copper alloy ;Tinned copper stranded
Sheath Material :
ETFE
Insulation Material :
PVC
Rated Voltage :
30V
Rated Temperature :
80ºC
Max Conductor Resistance :
:296.9Ω/km
Cable Voltage :
0.5kv/1min
Spec :
HT2505401
Description
UL2725 (2C×22AWG+2P×24AWG+WB)+(6C×22AWG+W)+(10C×28AWG+W) 80℃ 30V VW-1 ETFE Insulation PVC Jacket Cable
Product Specifications
ITEM A:2C×22AWG B:2P×24AWG C:6C×22AWG D:10C×28AWG
CONDUCTOR Material Tinned copper stranded Tin plated copper alloy
Size 72/0.08 44/0.08 72/0.08 49/0.05
O.D.(Ref) 0.78mm 0.61mm 0.78mm 0.45mm
INSULATION Material ETFE ETFE ETFE ETFE
Min.average thickness 0.20mm 0.18mm 0.20mm 0.18mm
Min.thickness at any point 0.18mm 0.13mm 0.18mm 0.13mm
O.D. 1.37±0.05mm 1.01±0.05mm 1.37±0.05mm 0.85±0.08mm
TWISTED O.D. / 2.02mm / /
CABLING Material Non-woven
/		 Non-woven
/		 Non-woven
/
Filler Optional Optional Optional
Braid Material Tinned copper / /
Size 0.15mm,≥80% / /
JACKET Material PVC(oil-resistant)
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. H×W:6.70±0.30mm×20.10±0.80mm
Technical Specifications
ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80℃
Max. DC conductor resistance(20℃)
A&C&C:59.4Ω/km B:94.2Ω/km D:296.9Ω/km
Voltage withstand test:AC 0.5kV/1min
Insulation resistance:100MΩ·km
PHYSICAL PROPERTIES
Tensile strength: ≥10.3MPa
Elongation: ≥100%
Aged condition: 113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Product Images
UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for DurabilityUL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?

A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.

Q: What certificates do you have?

A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.

Q: Can we get samples before ordering?

A: Yes, we are willing to arrange samples for you.

Q: What's your lead time?

A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.

Q: How do you guarantee product quality?

A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
