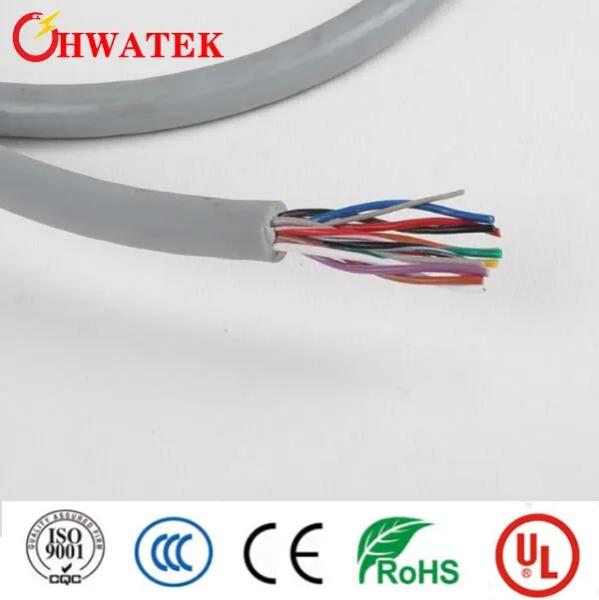

UL2517 3P 28AWG Industrial Robot Cable 305m ETFE Insulation

Specifications

Certification :

ISO9001, CE, CCC, RoHS

MOQ :

3,000

Price :

0.5

Conductor Material :

Copper

Sheath Material :

PVC

Insulation Material :

ETFE

Material Shape :

Round Wire

Conductor Size :

19-28AWG

Rated Temperature :

105ºC

Rated Voltage :

300V

Max Conductor Resistance :

140-354 Ω/km

Shield Material :

Tinned copper braid

Insulation Thickness :

0.20-0.25 mm

Conductor Diameter :

0.38-0.95 mm

Nominal Diameter :

0.81-1.45 mm

Shield Thickness :

0.80-1.00 mm

Cable Diameter :

5.30-11.1 mm

Quantity per Roll :

305m, 610m or as Request

Description

Products are used in high-speed moving part wiring of robot and other equipment
UL2517 3P 28AWG Industrial Robot Cable 305m ETFE Insulation

Product Number	Conductor				Insulation		Shield	Jacket		Max. Cond. Resistance (20⁰C) Ω/km
Product Number	Cores	Size AWG	NO./mm	Conductor Dia . mm	Nom. Thickness mm	Nom. Dia. mm	Material	Nom. Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (20⁰C) Ω/km
HT2517***001	3P	28	16/0.08	0.38	0.20	0.81	TC	0.80	5.30	140
HT2517***002	8P	28	16/0.08	0.38	0.20	0.81		0.80	7.30	140
HT2517***003	3P	24	43/0.08	0.60	0.20	1.01		0.80	6.00	223
HT2517***004	8P	24	43/0.08	0.60	0.20	1.01		0.80	8.50	223
HT2517***005	3P	23	60/0.08	0.72	0.20	1.12		0.80	6.40	223
HT2517***006	8P	23	60/0.08	0.72	0.20	1.12		0.80	9.10	223
HT2517***007	3P	20	106/0.08	0.95	0.25	1.45		1.00	7.60	223
HT2517***008	8P	20	106/0.08	0.95	0.25	1.45		1.00	11.1	354

Application: High-speed moving part wiring of robot
Application standard: UL758,UL1581
UL number: UL2517
Product character:
Pass UL VW-1 and CSA FT1 vertical flame test
Oil and heat resistance, anti-bending and abrasion
Effectively resist electromagnetic interference by braiding shield
Constructure:
Stranded bare copper conductor, 19-28AWG
ETFE insulation

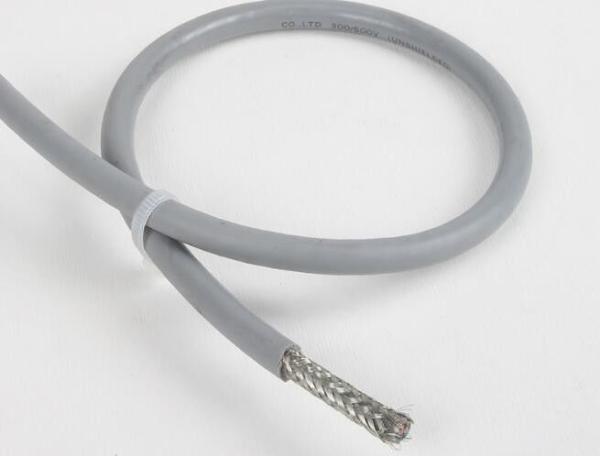

Tinned copper braid shielding
PVCJacket
Technical parameter:
Rated temperature :105ºC
Rated Voltage:300V

Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
UL2517 3P 28AWG Industrial Robot Cable 305m ETFE Insulation

Certificates

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
