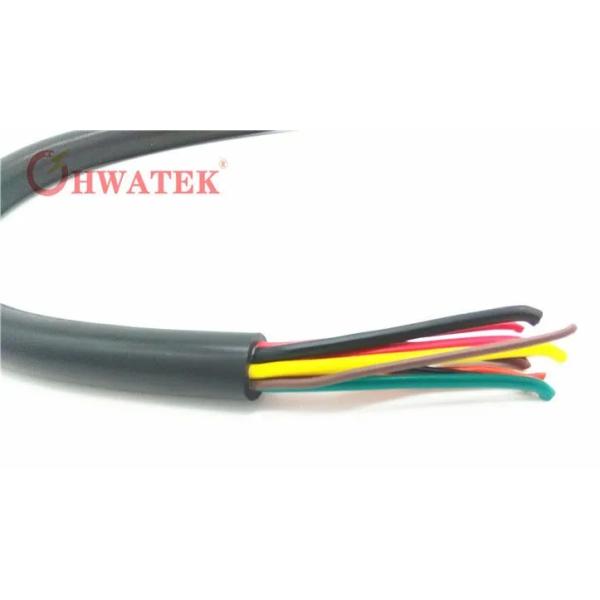

UL20002 TYPE PVC Tinned Copper Stranded 2C×26AWG (19/0.1T ) 105℃ 30V industrial Cable

Specifications

Certification :

ISO9001, CCC, RoHS

MOQ :

1000

Price :

Negotiable

Brand Name :

HWATEK

Model Number :

UL20002

Place of Origin :

China

Payment Terms :

T/T

Supply Ability :

1000KM/ month

Delivery Time :

4 Weeks

Packaging Details :

Reels or rolls

Conductor Material :

Tinned copper

Sheath Material :

PVC

Insulation Material :

PVC

Material Shape :

Round Wire

Conductor Size :

26 AWG

Conductor Stranding :

19/0.10

Conductor Diameter :

0.5 mm

Insulation Thickness :

0.23 mm

Nominal Diameter :

1.00±0.08mm

Max Conductor Resistance :

150 Ω/km

Rated Voltage :

30 V

Temperature Range :

105ºC

Voltage Withstand :

AC 0.5kV/1min

Description

Product Number	Conductor			Insulation	Jacket		Max Cond. Resistance(20ºC)Ω/km
Product Number	Cores	Size AWG	NO./mm	Conductor Dia.mm	Nom Thickness mm	Nom. Dia mm	Max Cond. Resistance(20ºC)Ω/km
HT20233***001	4P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***002	5P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***003	6P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***004	7P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***005	8P	26	18/0.10	0.49	0.21	0.90	131.8

Construction
Conductor : Stranded tinned or bare copper
Insulation: PVC,SRPVC, PP,ETFE,TPEE
Screened:construction with Cu-screening, tinned,approx. 85%
Jacket: PVC
Standards:International: UL758 , UL1581, UL2556,IEC60228 CL6
RoHS,REACH Compliant,
Technical data
Rated voltage:300 V
Rated  Temperature:-40ºC-105ºC
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Low adhesion
ozon- and uv-resistant
High property of alternating bending strength
High resistant to mechanical strain
Long life durabilities due to low friction-resistancen
Better chemical resistance
High stability
Higher economical solution
Reduced Ø, results low weight of moving materials
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
