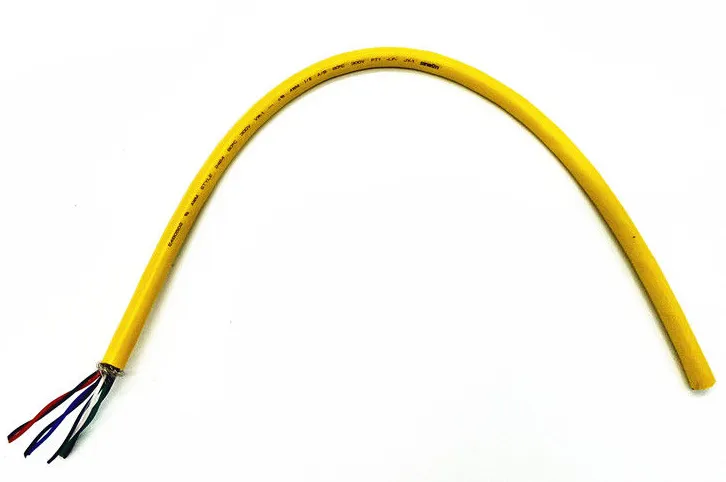

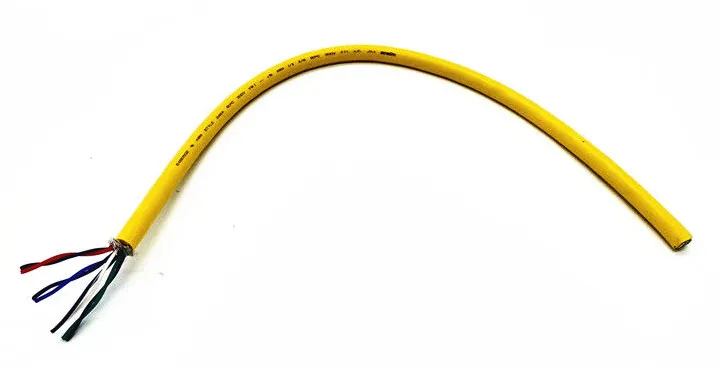

Name: Customized 2 Coax 36 AWG 3C 32AWG 1Coax 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable
Brand: HWATEK
Price: 1 USD

MachineU > China Products > Electrical Equipment & Supplies

Customized 2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable

Specifications

Certification :

ISO9001, CE, CCC, RoHS

MOQ :

1000

Price :

Negotiable

Brand Name :

HWATEK

Model Number :

Customized

Place of Origin :

China

Payment Terms :

T/T

Supply Ability :

1000KM/ month

Delivery Time :

4 Weeks

Packaging Details :

Reels or rolls

Model NO. :

Customized

Material Shape :

Round Wire

Qty/Roll :

305m,610m or as Request

Production Capacity :

20km/Day

Rated Temperature :

80ºC

Rated Voltage :

30V

Conductor Size :

2Coax×36AWG+3C×32AWG+1Coax×28AWG

Jacket Material :

PVC（biocompatible）

Insulation Material :

teflon

Conductor Type :

Tinned or bare copper

Spec :

HT2502430

Description

Products are widely used in industrial control system, household appliances, office system, and consumer electronics.
Customized 2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable

Application: Internal wring or external interconnection of electronic equipment.

Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.

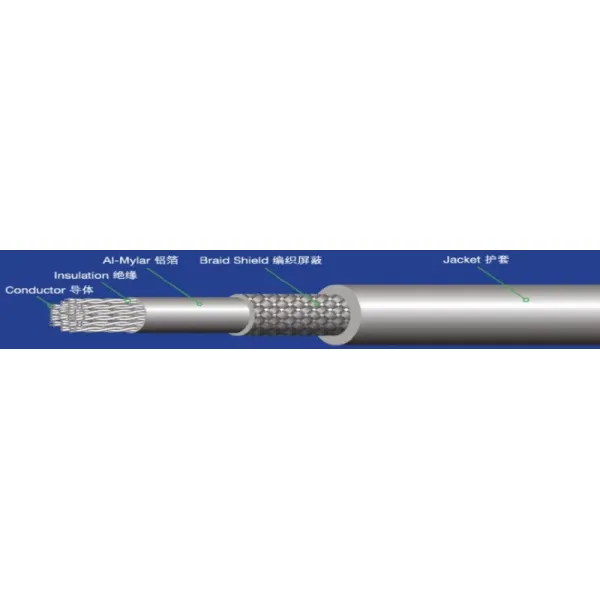

Constructure:
Tinned or bare copper, stranded or single conductor (no.:2-50conductors) 36-16AWG,different conductor size may be used in one cord
PP insulation
Max core wire size:20AWG ,Flat or round
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket(Halogen free material available) cable is either straight or spiral
Technical parameter:
Rated temperature : 60ºC
Rated Voltage: 300V

Product Number	Conductor				Insulation		Shield		Jacket		Max. Cond. Resistance (20⁰C) Ω/km
	core	Size AWG	NO./mm	Conductor Dia . mm	Nom. Thickness mm	Nom. Dia. mm	Tape thick. mm	Dia. of braid strand mm	Nom. Thick. mm	Nom. Dia. mm
HT21007**101	3C	28	7/0.127	0.38	0.26	0.80	0.025	0.10	0.80	3.80	223
HT21007**102	3C	26	7/0.16	0.48	0.26	0.90	0.025	0.10	0.80	4.04	140
HT21007**103	3C	24	11/0.16	0.60	0.26	1.12	0.025	0.10	0.80	4.51	87.6
HT21007**104	3C	22	17/0.16	0.76	0.26	1.30	0.025	0.10	0.80	4.90	55.4
HT21007**105	6C	28	7/0.127	0.38	0.26	0.80	0.025	0.12	0.80	4.70	223
HT21007**106	6C	26	7/0.16	0.48	0.26	0.90	0.025	0.12	1.00	5.30	140
HT21007**107	6C	24	11/0.16	0.60	0.26	1.12	0.025	0.12	1.00	6.00	87.6

Remark:Optional core wire number 2C-50C, and shielding way

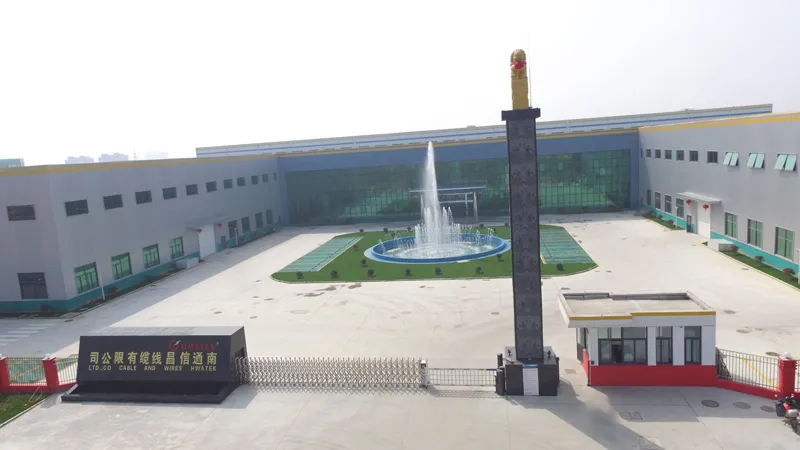

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
