UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Specifications

Certification :

ISO9001, CCC, RoHS

MOQ :

1,000

Price :

Negotiable

Brand Name :

HWATEK

Model Number :

Place of Origin :

China

Payment Terms :

T/T

Supply Ability :

1000KM/ month

Delivery Time :

4 Weeks

Packaging Details :

Reels or rolls

Conductor Material :

Copper

Sheath Material :

PVC

Insulation Material :

TPE

Material Shape :

Round Wire

Rated Temperature :

-40 ~ +105°C

Rated Voltage :

300V (EVJE, EVJT), 600V (EVE, EVT)

Conductor Type :

Stranded bare or tinned copper

Wire Specifications :

3×16AWG to 2×2AWG+4AWG+18AWG

Reference Current :

12A to 100A

Diameter Range :

8.2mm to 30.1mm

Cold Resistance :

Yes

Abrasion Resistance :

Yes

Oil Resistance :

Yes

Water Resistance :

Yes

UV Resistance :

Yes

Description

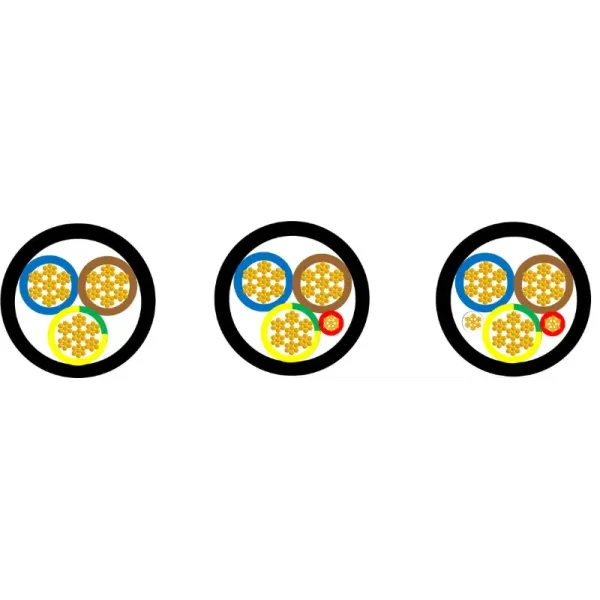

Structure Diagram: UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Reference standard:UL62 CSA C22.2 No.49

Product Category:

EVE / EVT (18AWG-500cmil,>=2Cores)

EVJE / EVJT (18AWG-12AWG,2-6 Cores)

Construction:

Rated temperature:-40 ~ +105°C

Rated voltage:300V(EVJE,EVJT)

600V(EVE,EVT)

conductor:Stranded bare or tinned copper

Insulation material:TPE/PVC

Sheath material:TPE/PVC

Cold resistance, abrasion resistance, oil resistance, water resistance, UV resistance, pass the VW-1 flame test, excellent resistance to flame propagation.

Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.

Structural parameter table:

Category	Wire specifications	Reference current (A)	Diameter (mm)
UL:EVE,EVT 600V	3×16AWG	12	10.8
	3×14AWG	16	13.4
	3×12AWG	23	14.2
	3×10AWG	32	16.2
	3×16AWG+1×18AWG	12	11.4
	3×14AWG+1×18AWG	16	13.6
	3×12AWG+1×18AWG	23	14.3
	3×10AWG+1×18AWG	32	15.9
	3×8AWG+1×18AWG	46	21.8
	2×8AWG+10AWG+18AWG	46	20.9
	2×6AWG+8AWG+18AWG	63	23.1
	2×4AWG+6AWG+18AWG	75	26.5
	2×2AWG+4AWG+18AWG	100	30.1
	3×16AWG+2×18AWG	12	12.1
	3×14AWG+2×18AWG	16	13.9
	3×12AWG+2×18AWG	23	15.0
	3×10AWG+2×18AWG	32	16.6
	2×8AWG+10AWG+2×18AWG	46	21.9
	2×6AWG+8AWG+2×18AWG	63	24.8
UL:EVJE,EVJT 300V	3×16AWG	12	8.2
	3×14AWG	16	9.0
	3×12AWG	23	10.1
	3×16AWG+1×18AWG	12	8.8
	3×14AWG+1×18AWG	16	9.5
	3×12AWG+1×18AWG	23	11.2
	3×16AWG+2×18AWG	12	9.5
	3×14AWG+2×18AWG	16	12.1
	3×12AWG+2×18AWG	23	13.2

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
