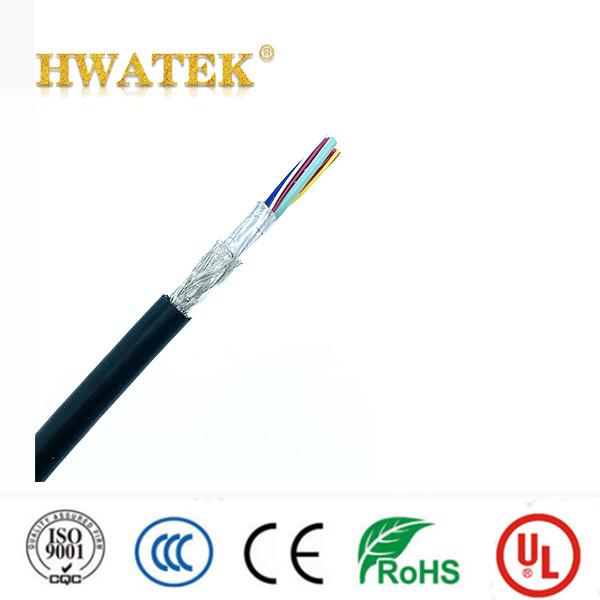

Medical Coax Cable Foam PE HDPE Insulated Tinned Copper Stranded
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper Stranded
Specifications
Brand Name :
Hwatek
Model Number :
UL20276
Certification :
ISO9001, UL, CCC, RoHS
Place of Origin :
China
MOQ :
305m,610m or as Request
Price :
$0.5-1
Payment Terms :
T/T
Supply Ability :
30KM/Day
Delivery Time :
5-8 Weeks
Packaging Details :
Rolled in Reels, Packed in Pallets.
Material Shape :
Round Wire
Color :
Optional
Transport Package :
Rolled in Reels, Packed in Pallets.
Typ :
Insulated
HS Code :
8544492100
Description

Medical Coax Cable Foam PE HDPE Lsulated Tinned Copper Stranded

Product Description

Product Description
ITEM A: 3Coax×30AWG B:1P×28AWG C: 4C×28AWG
CONDUCTOR Material Tinned copper stranded
Size 7/0.10±0.008mm 7/0.127±0.008mm 7/0.127±0.008mm
O.D.(Ref) 0.30mm 0.38mm 0.38mm
INSULATION Material Foam PE HDPE HDPE
Min.average thickness 0.45mm 0.15mm 0.15mm
Min.thickness at any point 0.35mm 0.10mm 0.10mm
O.D. 1.35±0.08mm 0.70±0.05mm 0.70±0.05mm
TWISTED O.D.(Ref) / 1.40mm /
SPIRAL Material Tinned copper / /
Size 45±3/0.10mm(90%) / /
INNER JACKET Material PVC / /
Average thickness 0.20mm / /
O.D. 2.00±0.10mm / /
CABLING Lay direction S
Material Al-mylar(face out) 125%
BRAID Material Tinned copper
Size 16/9/0.12mm(85%)
JACKET Material PVC
Min.average thickness 1.00mm
Min.thickness at any point 0.80mm
O.D. 8.00±0.20mm
ELECTRICAL CHARACTERISTICS PHYSICAL PROPERTIES
Rated voltage:30V Tensile strength: ≥10.3MPa
Rated temperature:80ºC Elongation: ≥100%
Max. DC conductor resistance(20ºC): Aged condition: 113±1ºC×168h
A: 376.9Ω/km B,C:237.2Ω/km Percent of original tensile strength: ≥70%
Voltage withstand test:AC 0.5kV/1min Percent of original elongation: ≥65%
Insulation resistant:100MΩ.km
Impedance :75±5Ω

Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper StrandedMedical Coax Cable Foam PE HDPE Insulated Tinned Copper Stranded
Certificates
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper Stranded
Production Progress
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper StrandedShipping
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper StrandedFAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
Medical Coax Cable Foam PE HDPE Insulated Tinned Copper Stranded
