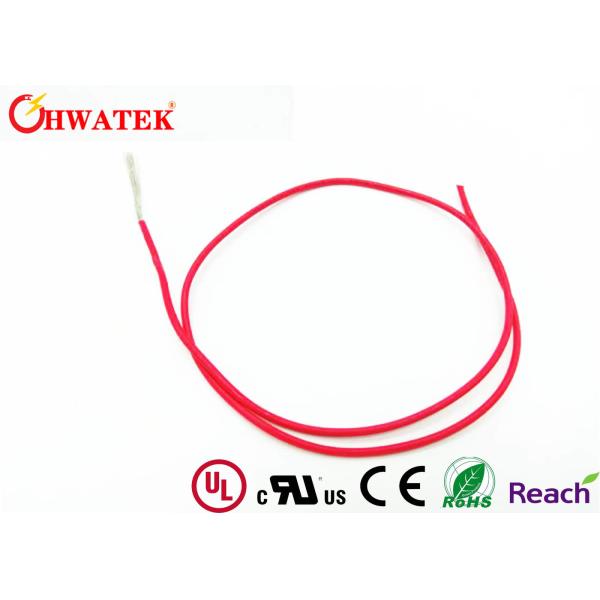

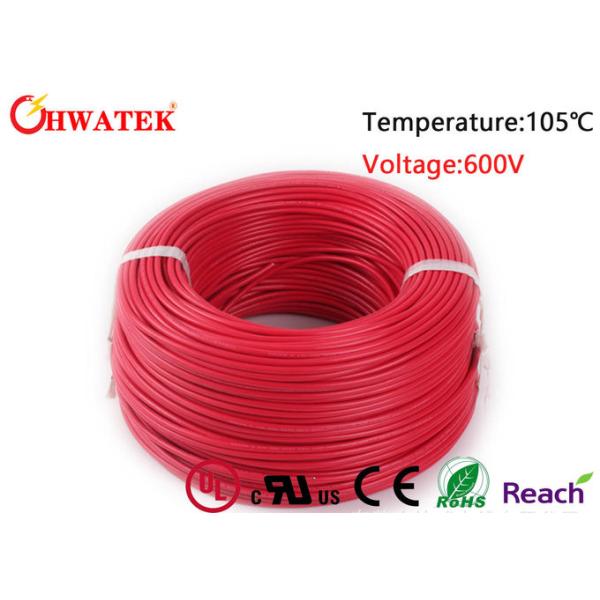

600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
Specifications
Brand Name :
HWATEK
Model Number :
UL1028
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL1028
Rated Voltage :
600V
Temperature :
105℃
Core Number :
1core
Size :
22AWG - 6AWG
Insulation material :
PVC
Conductor :
Solid or Stranded
Standard :
UL758,UL1581, UL2556
Flame :
VW-1,FT1,FT2
Application :
Internal wiring of appliances
Free Sample :
YES
Description

UL1028 PVC insulated single core flexible wire 600V 105℃ With Solid / Stranded Conductor For Internal wiring of applianc , VW-1,60 ℃ or 80 ℃ Oil

1.Construction with UL 1028:

Conductor : Solid or Stranded
Insulation: PVC

600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire

2.Standards with UL 1028:

International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

3.Technical data with UL 1028:

Rated voltage:600V
Rated Temperature:105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min

Printing :E258652 600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire AWM STYLE 1028 AWGXX 105℃ 600V VW-1 ---c600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

4.Specifications with UL 1028:

Part NO. Size

(AWG)		 Tinned copper stranded Insulation(PVC 105℃)
Construction Dia.
(mm)		 Resistance
(Ω/km)		 Avg. thick.(mm) Min. thick.
(mm)		 Outer Dia.
(mm)
HT1800731 18 16/0.254 1.20 23.2 1.14 1.02 3.7±0.15
HT1800730 16 26/0.254 1.50 14.6 1.14 1.02 4±0.20
HT1800729 14 41/0.254 1.90 8.96 1.14 1.02 4.4±0.20
HT1402902 12 65/0.254 2.36 5.64 1.14 1.02 4.8±0.20
HT1800728 10 105/0.254 3.20 3.546 1.14 1.02 5.7±0.20
HT1703460 8 168/0.254 4.30 2.23 1.14 1.02 6.9±0.30
HT1402893 6 266/0.254 5.40 1.403 1.52 1.37 8.7±0.30

5.Certificates with UL 1028:

UL, CUL, CE

6.Packing and Shipping with UL 1028:

  • The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  • If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  • Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  • The cargo, manufacturer, packing details will be labeled on the outer packing;
  • About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  • Shipping term, It depends on the value of the goods and the will of the customer.

7.More pictures with UL 1028:

600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire

600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire

600V 105℃ UL1028 PVC Insulated Single Core Flexible Wire
