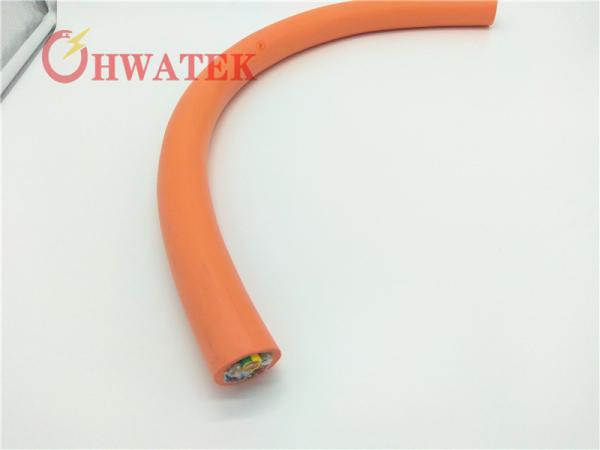

62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
Specifications
Brand Name :
HWATEK
Model Number :
62893 IEC 126
Certification :
TüV,RoHS
Place of Origin :
China
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3 W
Packaging Details :
carton / pallet
Conductor :
Stranded tinned or bare copper
Insulation :
EV1-2
Sheath :
EVM-1
Operating temperature :
-25~ +90°C
Rated voltage :
1500V
Product Category :
2*(4-150)+1*(4-95)+2*(2.5-6)+(0.5-1.0, 0-12Cores)
Description

EVC H05BZ5-F EVC H07BZ5-F 300/500V TüV certified electric vehicle charging cable

62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath

Certification Body:

Technischer Überwachungs-Verein

Certificate No.

Product Types
R 50471285

EVC H05BZ5-F

EVC H07BZ5-F
R 50488767 62893 IEC 126

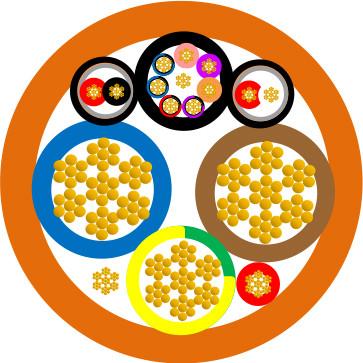

structure diagram:

62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath

Reference standard:EN50620:2017

IEC 62893-4-1:2020

Product Category:

EVC H05BZ5-F(1.5-2.5,3Cores)+(0.5-1.0,0-12Cores)；EVC H07BZ5-F3*1.5+(0.5-1.0,0-12Cores);

EVC H07BZ5-F(2.5-35,3-5Cores)+(0.5-1.0,0-12Cores);

62893 IEC 126 2*(4-150)+1*(4-95)+2*(2.5-6)+(0.5-1.0, 0-12Cores);

Construction:

Rated temperature EN50620:-35 ~ +90°C

Rated temperature IEC 62893:-25 ~ +90°C

EN50620 voltage:AC300/500V,450/750V

IEC 62893 voltage:DC1500V

conductor:Stranded bare or tinned copper

Insulation material:EV1-2

Sheath material:EVM-1

The material is soft, resistant to low temperature, oil, thermal shock, external load pressure and thermal stress, flame retardant up to VW-1, minimum bending radius up to 5*OD, easy to install. Comply with RoHS and REACH environmental protection requirements.

Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.

Structural parameter table:

Category

Wire specifications

Reference current

(A)

Diameter

(mm)
62893 IEC 126 2×25+1×16+2×4+2P(2×0.75)+ P(7×0.75) 100 28.4
2×35+1×16+2×4+2P(2×0.75)+ P(7×0.75) 125 30.8
2×50+1×25+2×4+2P(2×0.75)+ P(7×0.75) 150 32.4
2×70+1×35+2×4+2P(2×0.75)+ P(7×0.75) 200 35.7
2×95+1×50+2×4+2P(2×0.75)+ P(7×0.75) 300 39.1

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.

62893 IEC 126 DC1500V Electric Vehicle Charging Cable With EVM-1 Sheath
