TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
TPE Insulation AC450V 750V Electric Vehicle Charging Cable
Specifications
Brand Name :
HWATEK
Model Number :
EVC07EE EV07EC3E EVC07EEC4E EVC07EEC5E-H
Certification :
DEKRA,RoHS
Place of Origin :
China
MOQ :
6.1 KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3 W
Packaging Details :
carton / pallet
Conductor :
Stranded tinned or bare copper
Insulation :
TPE
Sheath :
TPE or TPU
Operating temperature :
-40~ +90°C
Rated voltage :
450/750V
Product Category :
(1-70，2Cores)+(0.5-0.75，1-4Cores) (1-70，3-5Cores)+(0.5-0.75，1-4Cores)
Description

EVC07EE EV07EC3E EVC07EEC4E EVC07EEC5E-H AC450/750V DEKRA certified electric vehicle charging cable

TPE Insulation AC450V 750V Electric Vehicle Charging Cable

Certification Body:

DEKRA

Certificate No.

Product Types
3173462.01DS EVC07EE;EV07EC3E;EVC07EEC4E;EVC07EEC5E-H

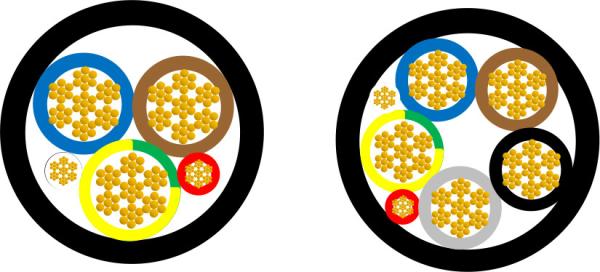

structure diagram:

TPE Insulation AC450V 750V Electric Vehicle Charging Cable

Reference standard:K 175-2:2015

Product Category:

EVC07EE;EV07EC3E;EVC07EEC4E;EVC07EEC5E-H (1-70,2Cores)+(0.5-0.75,1-4Cores)

(1-70,3-5Cores)+(0.5-0.75,1-4Cores)

Construction:

Rated temperature:-40 ~ +90°C

Rated voltage:AC450/750V

conductor:Stranded bare or tinned copper

Insulation material:TPE

Sheath material:TPEorTPU

Cold resistance, wear resistance, oil resistance, acid and alkali resistance, water resistance, bending resistance, external load pressure resistance and thermal stress resistance, through single burning test (k175 / CQC), high flame retardant

Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.

Structural parameter table:

Category

Wire specifications

Reference current

(A)

Diameter

(mm)
EVC07EE-H 2×1.0 10 10.5
2×6 34 15.9
2×16 67 24.0
2×50 150 35.8
3×6 34 17.7
3×16 67 25.5
3×50 150 38.3
4×10 50 25.0
4×35 117 35.5
5×1.0 10 13.3
5×35 117 40.7
EVC H07EEC5E-H 2×1.0 10 13.0
2×4 25 17.0
2×50 150 40.7
3×16 67 29.1
3×25 94 34.2
4×25 94 37.5
4×35 117 41.2
5×1.0 10 16.2
5×16 67 34.8
5×70 200 58.5

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
