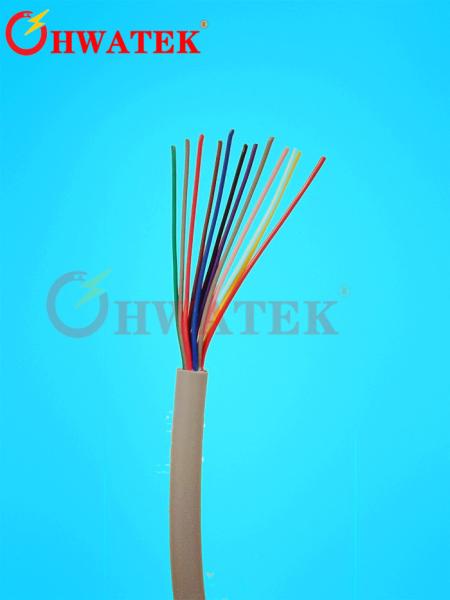

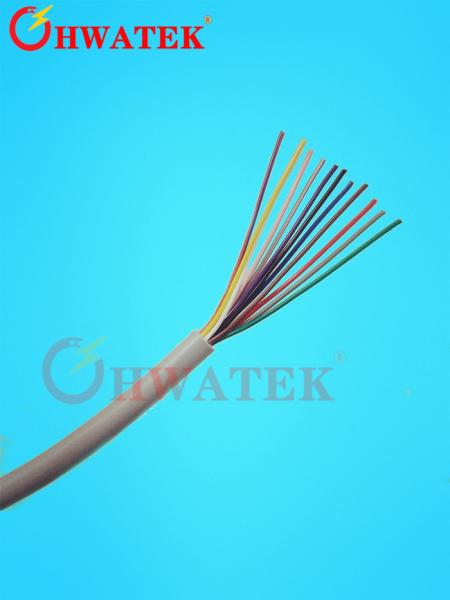

Multicore Flexible Electrical Automation Cable For Assembly And Production Line
Multicore Flexible Electrical Automation Cable For Assembly And Production Line
Multicore Flexible Electrical Automation Cable For Assembly And Production Line
Multicore Flexible Electrical Automation Cable For Assembly And Production Line
Specifications
Brand Name :
HWATEK
Certification :
CE , RoHS , UL , CUL
Place of Origin :
China
MOQ :
6.1KM
Payment Terms :
T/T
Delivery Time :
2W
Packaging Details :
Carton / Pallet
Price :
Negotiable
Conductor :
Class 6 conductor , ultrafine multi-strand bare copper wire, twisted into bundles
Insulation :
SR-PVC , PVC , TPE
Wrapping :
Non-woven wrapping
Braid :
With or without tinned copper
Jacket :
PVC / PUR Black or Gray
Description

Flexible cable in low temperature , Flexible electrical automation cable , Soft cable in assembly and production line

1. Advantage

High Reliability

Supple in low temperature, temperature resistant to - 40 ℃ at lowest

2. Product feature

Cyclic bending 5 million times drag chain design life

Abrasion resistance , cut-resistance

Oil resistance

Flame retardant accord with IEC 60332-1-2

3. Technical parameter

Core wires logo : The surface of black wire marking by white digital number

Insulation resistance : ˃ 20MΩ*Km

Rated voltage : 300V

Voltage resistance test : Core to core:3000V , Core to shield : 1500V

Mobile installation : -10 ℃ ~ +80 ℃

Fixed installation : -40 ℃ ~ +80 ℃
