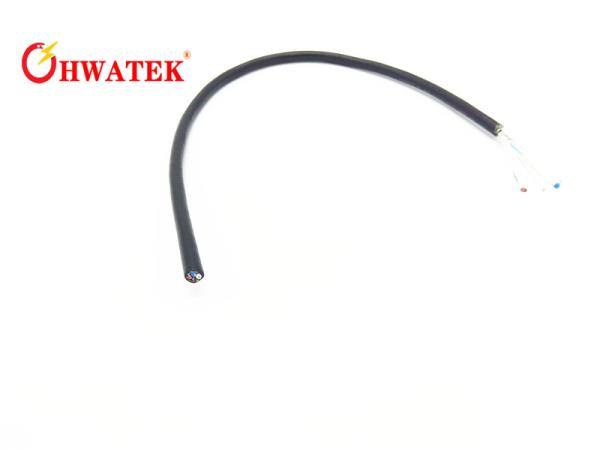

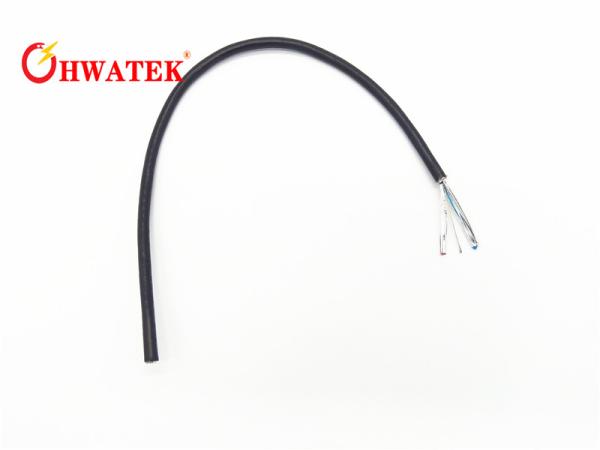

UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil
Specifications
Brand Name :
HWATEK
Model Number :
UL22049
Certification :
UL,CUL, CE,ROHS, REACH
MOQ :
6.1KM
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL22049
Size :
40 AWG MIN
Conductor :
solid or stranded, tinned or bare copper.
Core Number :
Two or more conductors or groups of conductors laid parallel or twisted forming a flat, oval or round cable.
Standard :
UL758,UL1581, UL2556
Insulation material :
PVC，PE, XLPE,FRPE
Shield material :
copper, AL-Mylar, tinned copper
Sheath material :
PVC
Application :
External Wiring or Internal Wiring.
Rated Voltage :
1000V
Temperature :
-40℃-90℃
Flame :
VW-1,FT1,FT2
Free Sample :
YES
Description

UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil

Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, XLPE,FRPE

Shield or Braid: Optional

Jacket: PVC

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:1000 V
Rated Temperature:-40℃-90℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ Oil

Voltage withstand test:AC 3.5kV/1min

Printing :E258652 UL22049 Multiple-conductor cable using PVC jacket, 90 ℃, 1000 V VW-1, 60 ℃ Oil AWM STYLE 22049 AWGXX 90℃ 1000V VW-1 ---c AWM I A/B 90℃ 1000V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
