Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS
Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS
Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS
Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS
Specifications
Brand Name :
BJPFM
Model Number :
PFMA-SF
Certification :
SGS
Place of Origin :
Hebei China
MOQ :
1sqm
Price :
USD20.58-50.95/sqm
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000m/Month
Delivery Time :
5-8days after payment
Packaging Details :
woven bag and carton/wooden case
Product name :
High-precision filtration stainless steel sintered filter mesh
Material :
Stainless steel 304 316 316L
Thickness :
1.7mm-3.5mm
Usage :
Filter
Type :
Sintered mesh
Filter rating :
85-99% Filter Mesh
Application :
Kinds Filtration Industry
Size :
Customers' Request
Feature :
Corrosion Resistance,Excellent Filtration Performance,Durable,Security and food,microns ss Metal Powder Oil Filter
Description

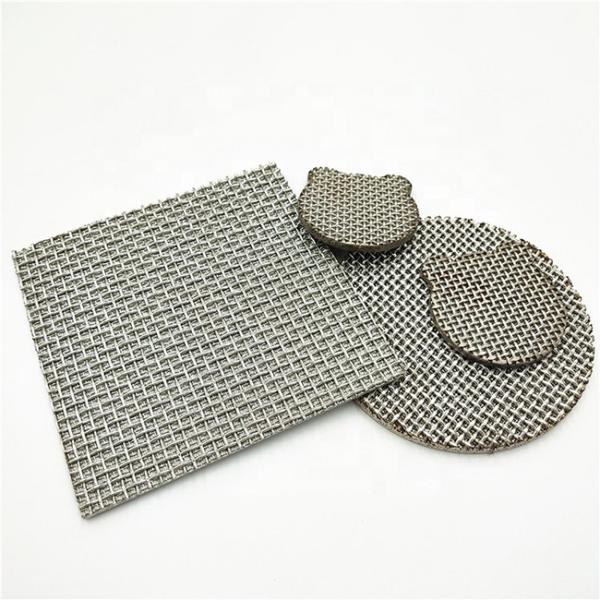

Multi-structure mixed stainless steel screen sintered filter mesh

1. Stainless Steel Sintered Filter Mesh Description

Five-layer sintered mesh is the sintered mesh with the most widely used standard structure. Generally it has a five-layer structure, which is divided into five parts: protective layer, filter control layer, dispersion layer, support skeleton layer, and skeleton layer.

Standard materials are SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L), and can also be customized for customers Hastelloy, Monel, Inkonel and other special alloys.


Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS

2. Stainless Steel Sintered Filter Mesh Features


1. High strength: after five layers of wire mesh sintering, it has extremely high mechanical strength and compressive strength.
2. High accuracy: the filtration granularity of 1-100um can play a uniform surface filtration performance.
3. Heat resistance: it can be used for continuous filtration from -200 to 600 C.
4. Cleanness: the surface filtration structure with excellent countercurrent cleaning effect is simple and easy to clean. It can be washed by countercurrent water, filtrate, ultrasonic wave, melting and baking.

3. Stainless Steel Sintered Filter Mesh Specification

Material: Stainless steel 304 316L 316 or customized
Layer 5 layer or more than
Width: 1-2m wide or customized
Type: Sintered mesh
Thickness 1.7-3.5mm or according to your needs.
MOQ: 1Sqm

Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS

4. Stainless Steel Filter Mesh Application

Filtration and purification of various polymer melts in chemical fiber film industry, high temperature in petrochemical industry, filtration of corrosive solution, filtration of materials in pharmaceutical industry, washing and drying;

The application of gas homogenization in the powder industry, the fluidization plate in the steel industry;
Explosion-proof electrical devices such as the speaker.

Multi Structure Mixed Sintered Filter Stainless Steel Wire Mesh Screen For SGS
