Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation
Specifications
Brand Name :
Xin Ming
Model Number :
BA(M)Q20/630-25
Certification :
ISO9001, CE
Place of Origin :
Made in China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
10000 Sets/per Year
Delivery Time :
Within 25-35 working days after receive 30% deposit
Packaging Details :
Standard Packing
Material :
PP, Steel
Voltage :
380V/220V/400V, Customized
Dimension(L*W*H): :
2750*1150*1100(mm)
Type :
Hydraulic Filter Press
Function :
Liquid Solid Separation,Dewatering
Filter Pressure :
≥0.6MPa
Application :
Beverage/Food/Beer/Pharmacy/Fine Chemical
Filter Area :
20M2
Filter Clothes :
PP
Cake Thickness :
＞25mm
Weight :
3300kg
Life time :
3~5years
Description

Pure Food Grade Polypropylene Making the Blood Industry Filter Press

Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

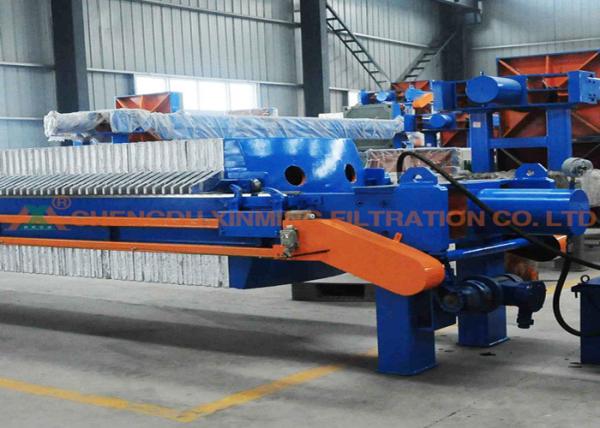

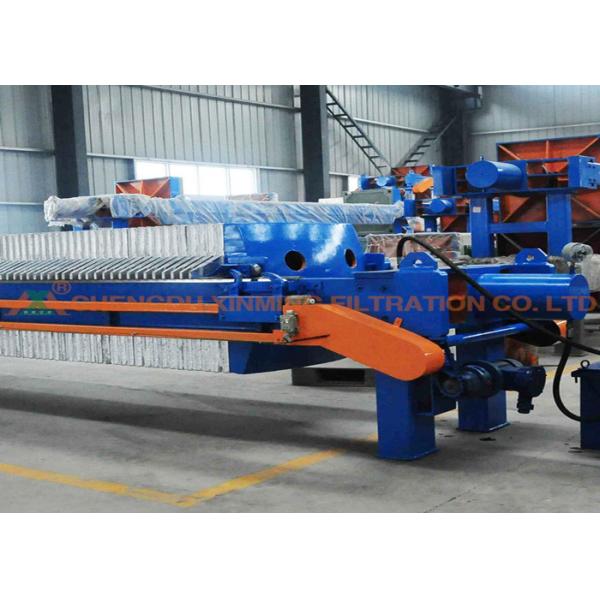

630 Manual or Automatic Hydraulic Filter Press

Manual or Automatic hydraulic filter press equipped with screw jack for driving the pressing system.Simplified structure,no need power supply,economy,normally suitable for 1-40m2 filtration area.

Holding pressure by electro connecting pressure gauge,convenientoperation,steady,reliable structure,suitable for middle class of filtration area.

Due to the manual operation, this type of filter press is use in low frequencyy and less filter plate working condition.

Technical Data

Model
BA(M)Q20/630-25
Filter Area(m2)
 20
Plate Size(mm)
630*630
Cake Thickness(mm)
＞25
Filter Chamber Volume(L)
 298
Plate Qty(pcs)
 24
Frame Qty(pcs) 25
Filtration Pressure(MPa)
≥0.6
Weight(kg)
 3300
Dimensions L*W*H(mm)
2750*1150*1100
Foundation Size L/B/D/H(mm)
2270/400/1000/820/565

Feature

1.Simplified structure

2.No need power supply

3.Solid&liquid separation

4.Suitable for 20 m2 filtration area

Fine chemical of industries,food, beverage,beer,sugaring...

Application


Pigment&dye pharmacy chemical
suitable for industries of middle class of filtration area

Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

Dewatering rollers are arranged in scientific way.Filtrate is respectively discharged from gravity zone,wedge-shaped zone and squeezing zone without disturbing each other.Dewatering rollers has larger diameter and better dewatering effect, they endowed belt filter with high treatment capacity, high efficiency and energy saving.

Our Service
Pure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid SeparationPure Food Grade Polypropylene Industrial Filter Press For Liquid Solid Separation

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Maintenance, warranty.

Chengdu Xinming Environmental Protection Co., Ltd is a professional equipment manufacturing enterprises , specialized in design ,manufacture and sales of various filtration equipment as well as comprehensive filtration solutions and projects. We have a sound quality assurance system and advanced testing equipment ,can be from raw material into the factory warehousing , processing , assembly , to the whole machine factory supervision and control throughout the process . we have the high-class R&D personnel , experienced workers and high qualified sales team , we are devoting to provide best products for our clients.
