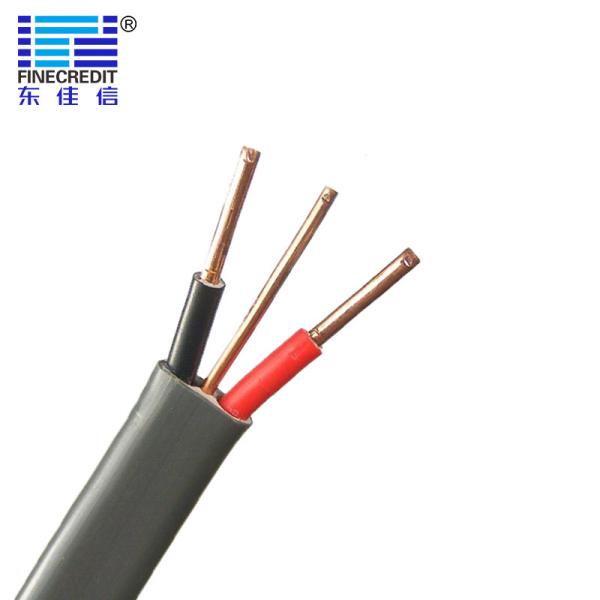

Grey 6242y Insulated Electrical Cable For Harmonised Lighting
Grey 6242y Insulated Electrical Cable For Harmonised Lighting
Specifications
Brand Name :
JIAXIN
Model Number :
6242Y
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
7-15 working days
Packaging Details :
Steel wooden drum
Product Name :
6242Y
Standards :
BS 6004, EN 60228
Flame Retardant :
IEC/EN 60332-1-2
Insulation :
PVC
Voltage Rating :
300/500V
Temperature Rating :
-5°C to +70°C
Sheath Colour :
Grey
Sheath :
PVC
Description

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

▼ TWIN & EARTH 6242Y FLAT PVC HARMONISED LIGHTING POWER CABLE

1. APPLICATION

Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue.Suitable for laying in conduit or trunking where mechanical protection is required.

2. Datas

Nominal cross-sectional area of conductors

Class of conductor

Conductor Type

Number of Wires

Maximum DCR @ 20ºC

1.0

1

RE

1

18.1

1.5

1

RE

1

12.1

2.5

1

RE

1

7.41

4

2

RM

7

4.61

6

2

RM

7

3.08

10

2

RM

7

1.83

16

2

RM

7

1.15

3. Construction

a. Conductor

RE: 1mm² to 2.5mm²: Class 1 solid copper

RM: 4mm² to 16mm²: Class 2 stranded copper

b. Circuit Protection Conductor (Earth)

1mm² to 2.5mm²: Class 1 solid copper

4mm² to 16mm²: Class 2 stranded copper

c. Insulation

PVC (Polyvinyl Chloride)

d. Sheath

PVC (Polyvinyl Chloride)

e. Sheath Colour

Grey

▼ CNAS Labortory

3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,

including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,

High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

▼ Production equipment:

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

▼ Packing&Delivery:

Packaging details :

Delivery :

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

Grey 6242y Insulated Electrical Cable For Harmonised Lighting

Steel Wooden Drums

Cable Drum In container

shipped in 15 days after payment
