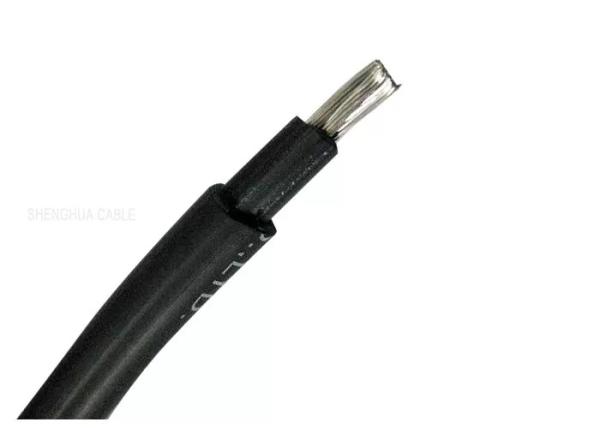

Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
Specifications
Brand Name :
DONGJIAXIN
Model Number :
PV 4mm2 6mm2 10mm2 16mm2
Certification :
TUV,ISO,CE,IEC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
7-15 working days
Packaging Details :
Steel wooden drum
Model name :
PV 4mm2 6mm2 10mm2 16mm2
size :
1.5mm2,2.5mm2,4mm2,6mm2
Rated Voltage :
0.6/1 KV
Type :
Low Voltage
Conductor Type :
Flexible Tinned Copper
Sheath :
Sunlight Resistant PVC
insulation :
HDPE(High Density Polyethylene)
application :
Power Station, PV power dc,ac system
Description

Industrial Solar Panel 600V - 1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation

Industrial Solar Panel 600V - 1000V PV Wire PV system AC and DC power cable h1z2z2-k 1X1.5mm2 High quality photovolta

Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification

Industrial Solar Panel 600V - 1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation

Application

Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment

Construction

Core Conductor Tinned annealed copper (stranded core)
Popular sizes 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2
Cable conductor Stranded tinned annealed copper
Insulation Electron-beam cross-linked Polyolefin(XLPO)
Jacket XLPO/ PE (black, red)
Other specs a) Temperature rating: -40C up to +120C
b) Fire performance: IEC 60332-1, UL1581 VW-1
c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2
d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e) Voltage suitable: 600-1000V

Advantage:

With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc

PV Cable Market Future:

Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc

Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing

Technical Parameter

Section Area
(mm2)		 External Diameter
(mm)		 Current Carring Capacity
(A)
4 6.1 55
6 7.2 70
10 9.0 98
16 10.2 132

Contact Details

Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel

Product Package

Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel

Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.

▼ Delivery Port :

Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
Port of Shenzhen Port of Hongkong Port of Guangzhou

Testing process

Industrial 600V - 1000V Photovoltaic Cable H1z2z2-K For Solar Panel
