Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard
Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard
Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard
Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
WD
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Max Flow :
1000m3/h
Max Head :
120m
Brand :
Chengdu Yongyi
Keywords :
Volute Centrifugal Pump
Type :
Anticorrosion
Efficiency :
70%
Sample :
Not Available
Shaft Seal :
Mechnical Seal/Packing Seal
Description

Long Life International Standard Chemical Industry Anticorrosion 380V Pumps

Features

• Excellent performance, Reliable, High efficiency and low operating costs.
• Suitable for the most demanding industrial applications.
• Quick and easy installation, safe operation, easy maintenance and service.
• Modular design minimize the spare parts inventory cost.

Technical Parameter

model

Clean Water Performance

flow

(m3/h)

head

(m)

speed

(r/min)

maximum

efficiency

(%)

NPSH

(NPSHr)

m

pump head weight

KG

shaft component

40WD-250

8-20

15-28

1450

39

0.6

141

45

40WD-310

8-40

23-42

1450

45

1

257

55

40WD-350

8-45

35-54

1450

37

1

271

55

50WD-250

10-30

15-28

1450

40

0.7

146

45

50WD-310

15-60

25-42

1450

45

1.1

262

55

50WD-350

15-70

35-54

1450

50

1.1

286

55

50WD-400

20-75

50-75

1450

45

1.1

483

70

65WD-250

30-70

15-28

1450

48

1.1

149

45

65WD-310

30-90

25-40

1450

57

1.4

274

55

65WD-350

40-100

35-54

1450

59

1.5

280

55

65WD-400

50-120

45-75

1450

55

1.7

495

70

65WD-450

50-120

70-95

1450

52

1.7

524

70

80WD-250

70-100

15-25

1450

61

1.5

153

45

80WD-310

70-120

25-40

1450

62

1.7

288

55

80WD-350

70-160

35-52

1450

65

2.0

295

55

80WD-400

70-160

50-75

1450

62

2.0

500

70

80WD-450

70-160

70-95

1450

60

2.0

539

70

100WD-310

100-150

20-38

1450

65

1.9

293

55

100WD-350

100-220

35-50

1450

65

2.5

299

55

100WD-400

100-220

40-72

1450

65

2.5

529

70

125WD-310

120-260

18-36

1450

67

2.8

304

55

125WD-350

120-300

35-50

1450

68

3.2

307

55

125WD-400

140-350

45-70

1450

70

3.4

559

70

125WD-450

150-360

65-90

1450

67

3.6

741

80

150WD-310

200-400

18-35

1450

72

3.8

332

55

150WD-350

200-450

15-48

1450

75

4.2

333

55

150WD-400

200-450

40-65

1450

73

4.2

597

70

150WD-450

200-500

60-80

1450

67

4.5

753

80

200WD-350

300-600

28-47

1450

79

5

583

70

200WD-430

300-650

50-65

1450

75

5.2

765

80

250WD-350

400-900

26-45

1450

79

6.5

850

80

250WD-430

400-900

50-61

1450

75

6.5

910

90

Parameter

Discharge Size Inlet Size Capacity Head Power
40mm~200mm 50mm~250mm 8 ~ 800 m³/h 10 ~ 90 m Electric

Model and Definition

For example:

Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard

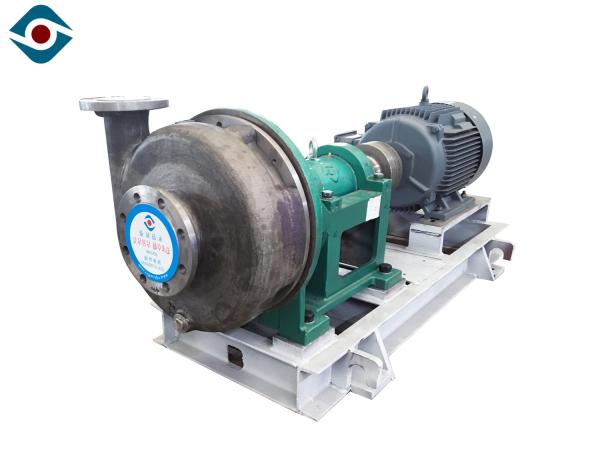

Product Picture

Industry Anticorrosion 380V Electric Chemical Pump Long Life International Standard

Application

Alkali industry: mother liquid of ammoniacal brine for production of calcined soda,ammonia and soda,caustic alkali for production of chloralkali,chlorine products,chlorate,hypochlorite etc.
Nonferrous metallurgy: electrolyte of electrolyzed copper and nickel,acid mist/liquid for cobalt production,ore pulp for zinc production,ammonium vanadate for vanadium production and acid thiourea liquid forgold production.
Acid industry: nitric acid,sulphuric acid,hydrochloric acid,phosphoric acid,acetic acid etc.
Petrochemical: petroleum refined aldehydes,alky| benzene production.
Paper making: boiling liquid of pulp and bleaching liquid.
Chemical fertilizer industry: production of urea and ammonium nitrate.
