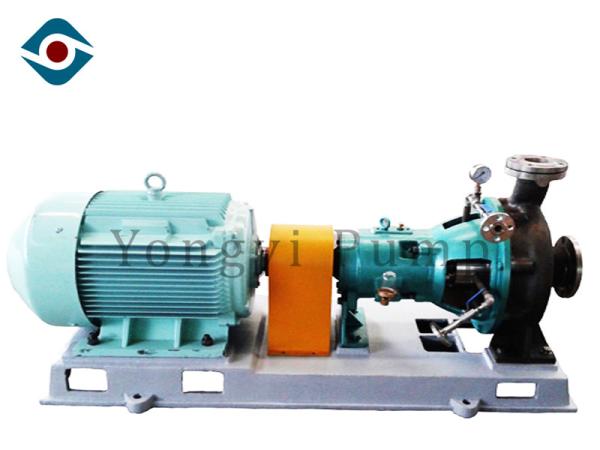

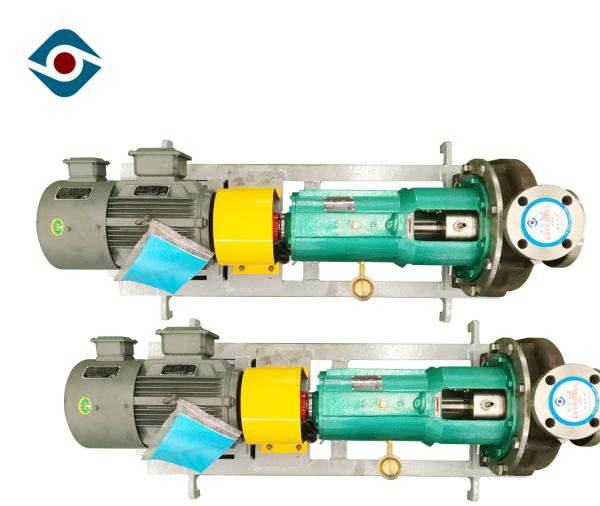

Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump
Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump
Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump
Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
CZ
Certification :
ISO9001
Place of Origin :
Sichuan，China
MOQ :
1 Set
Price :
USD499-6000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Quality Export Wooden Box
Max Flow :
2000m3/hr, 7334GPM
Max Head :
160m, 525ft
Standard or nonstandard :
Standard
Motor :
According to the customer's requests
Frequency :
50HZ / 60HZ
Application :
Chemical
Discharge Flange :
DN32-DN300
Description

Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump

Product Advantages

1. Resistant to acid, alkali, wear and high temperature.
2. High mechanical strength, steady performance, good tightness.
3. Convenient operation and durable.
4. Be able to transport water that under the position it was installed. No need for filling liquid after the first time it was used.

5. Technical condition follows the standrad ISO5199/GB/T5656.

Structure Diagram

YCZ-series chemical process pump is single -stage, single priming, horizontal cantilever centrifugal pump. The suction inlet and discharge are cast together with the pump body. The pump and motor are installed on a common base, which can be cast or welded.


Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump

Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump

Operation Data

Discharge Size:20mm ~250mm

Inlet Size:32mm~300mm

Capacity:4~2000m³/h

Head:2~160m

Maximal Efficiency:65%

NPSH:0m~3.5m

Impeller Type: closed/half open

RPM:1450r/min~2900rpm

Details

Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump

Applications

  • Suitable for environment protection, construction, fire fighting, chemical pharmacy, printing, dyeing, brewage, power plant, electroplate, paper making, washing for mining and cooling for equipment.
  • Application as sprayer equipped with beam nozzle that turning water into little drop irrigation for farm, garden, etc.
  • It is suitable for clear water, sea water, acid or alkali chemical medium and slurry (viscosity≤100 centipoise, consistency of solid can not exceed 30% of total medium).

Certifications

Acid Resistant Chemical Process Pump Split Casing Fluorine Plastic Material Priming Pump
