Specifications
Brand Name :
Chengdu Yongyi
Model Number :
CZ
Certification :
ISO9001
Place of Origin :
Sichuan,China
MOQ :
1 Set
Price :
USD499-6000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Quality Export Wooden Box
Theory :
Centrifugal
Max Flow :
2000 m3/h
Max Head :
160 m
Voltage :
220V/380V
Fuel :
Electric
Standard or nonstandard :
Standard
Motor :
According to the customer's requests
Frequency :
50HZ / 60HZ
Application :
Chemical
Description

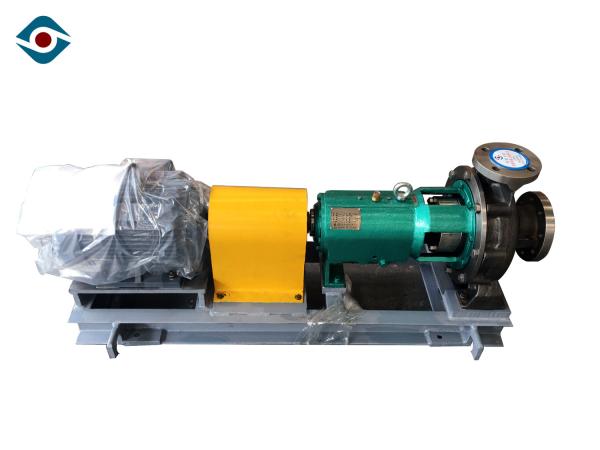

High Temperature High Performance Pump Electric Chemical Pump No Leakage for Corrosive Solutions

Product Advantages

- Wear resistant metal or rubber wet end parts, long service life

- Wide options for impeller

- Various types of pump seals to suit different working condition

- Grease or oil lubrication

- Discharge branch can be positioned at intervals of 45 degree

- Easy to maintain

Services

-Acidic Services
-Alkaline Services
-Corrosive Slurries
-Highly Viscous & High Freezing point Fluids

Structure Diagram

High Temperature Electric Chemical Pump No Leakage For Corrosive Solutions

Technical Specification

Discharge Size Inlet Size Head Flow Maximal Efficiency NPSH Impeller Type RPM
20~250mm 32~300mm 2~160m 4~2000m³/h 65% 0m~3.5m closed/half open 1450~2900

Data Sheet

Model Rated Speed n=2900r/min Rated Speedn=1450r/min
Impeller

Flow Q

(m3/h)

Head

H(m)

Relative Density ρ=1.00 Relative Density ρ=1.84 Impeller

Flow

(m3/h)

Head H(m)

Relative Density

ρ=1.00

Relative Density

ρ=1.84

Motor Power and Model Motor Power and Model
Kw Kw Kw Kw

YCZ80

/250

D 150 55 37 200L2-2 75 280S-2 E 70 11 5.5 132S-4 7.5 132M-4
X 140 50 30 200L1-2
E 130 47 55 250M-2

YCZ80

/315

A 200 130 110 315S-2 185 315L-2 A 100 32 15 160L-4 30 200L-4
B 190 125 B 95 30
M 180 120 90 280M-2 160 315L1-2 C 85 24 11 160M-4 18.5 180M-4
N 170 110 75 280S-2 D 70 18 7.5 132M-4 15 160L-4
C 160 100 132 315M-2
X 150 90 110 315S-2
D 140 80 55 250M-2 90 280M-2

YCZ80

/400

A 105 52 30 200L-4 55 250M-4
B 100 50 55 250M-4
C 90 44 45 225M-4
D 80 38 18.5 180M-4 37 225S-4
E 75 30 15 160L-4 30 200L-4

YCZ100

/200

A 230 45 45 225M-2 75 280S-2 A 115 11 7.5 132M-4 11 160M-4
B 210 40 37 200L2-2 55 250M-2 B 100 10 5.5 132S-4
C 180 32 22 180M-2 45 225M-2 C 90 8 4 112M-4 7.5 132M-4
D 150 25 37 200L2-2 D 80 6 3 100L2-4 5.5 132S-4

YCZ100

/250

A 280 75 90 280M-2 160 315L1-2 A 130 20 15 160L-4 22 180L-4
B 260 70 75 280S-2 132 315M-2 B 125 16 11 160M-4 18.5 180M-4
M 240 65 75 280S-2 110 315S-2 C 120 14 15 160L-4
C 220 60 55 250M-2 110 315S-2 D 100 10 7.5 132M-4 11 160M-4
N 200 52 45 225M-2 90 280M-2
D 175 45 37 200L2-2 75 280S-2

YCZ100

/315

A 270 135 160 315L1-2 A 130 32 22 180L-4 37 225S-4
B 260 128 132 315M-2 B 120 30 18.5 180M-4 30 200L-4
M 250 120 C 100 26 15 160L-4
N 230 112 110 315S-2 185 315L-2 D 90 21 11 160M-4 18.5 180M-4
C 220 105
X 210 95 90 280M-2 160 315L1-2
D 190 85 75 280S-2 132 315M-2

Materials of Construction

Graded Cast Iron, Cast Steels,Stainless Steel of different grades, Non-ferrous materials, DIN 4136, CA 15, CA6NM, CN7M, R-55, Duplex Stainless Steel, CD4MCu, Hastalloy grades and Special Alloy Steels.
