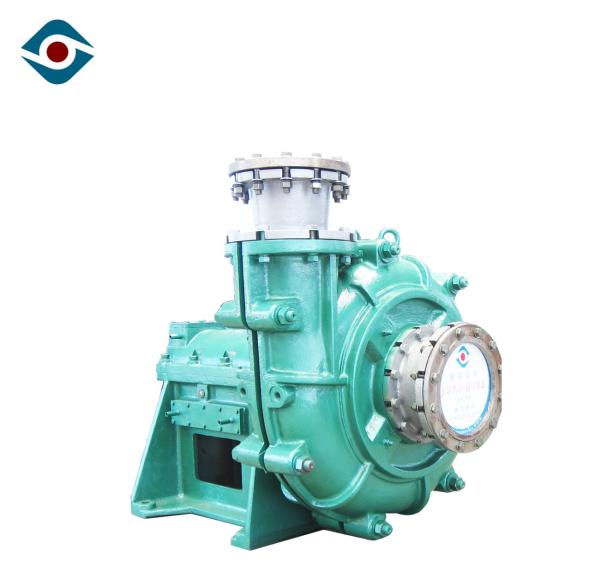

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump
Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump
Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump
Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJ
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Theory :
Centrifugal Pump
Capacity :
Up to 3000 m³/h
Head :
Up to 130 m
Structure :
Single-stage Horizontal
Speed :
1450rpm~2900rpm
Material :
Chrome Alloy
Description

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump

Product Description

ZJ-series is single stage single-suction cantilever centrifugal slurry pump.

ZJ-series pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.

Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced

High-alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage componentsto improve service life.

Application

  • Mining and mineral processing
  • Heavy duty and abrasive slurries
  • Mill discharge
  • Sand and gravel
  • Slurry transfer
  • Cyclone feed
  • Dredging
  • Boost pumps

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump

Product Details

Discharge Size: 20mm~350mm
Inlet Size: 32mm~400mm
Capacity: 4 ~ 3000 m³/h
Head: 10 ~ 130 m
Maximal Efficiency: 70%
NPSH: 0m~3m
Allowable Max Motor Power: 315 kw
Allowed Max Particle Size: 20 mm
Seal Type: step-down dynamic seal
Pump Weight: up to 3000kg
RPM: 1450 r/min

Parameter

Model

Clear Water Performance

Flow Q

Head

Rotating speed n

Shaft power (Pa)

Effectiveness η

(m³/h)

m

r/min

kw

%

300ZJ(G)-I-A

704-2333

30.6-80

490-980

135-505

66-81

250ZJ(G)-I-A

405-1480

29.1-128.7

730-980

58.3-652

54-76.9

200ZJ(G)-I-A

256-976

28-133.7

730-980

60.3-448.1

50-79.6

150ZJ(G)-I-A

164-600

19.4-91.2

730-980

15.8-161.5

46.1-74.6

100ZJ(G)-I-A

86-360

16-100.2

980-1480

6.7-105.5

58.7-70.4

80ZJ(G)-I-A

60-242

15.7-109.8

980-1480

5.5-115.9

38.8-66.7

65ZJ(G)-I-A

28-69

11.2-34.8

960-1460

1.7-10.8

54.2-63.5

50ZJ(G)-I-A

31-111

34.3-110.7

970-1480

9.7-66.9

12.2-45.1

40ZJ(G)-I-A

9-23

9.1-44.6

1400-2900

0.3-4.7

33.2-52.4

More Details

1) Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.

2) Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.

3) Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.

4) Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

5) Throat bush – wear is reduced and maintenance simplified by the use of tapered.

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump

Installation Dimension

Single base

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump


Sharing Base

Metal Lining Horizontal Slurry Pump , Sand Experienced High Pressure Mud Pump
