Long Life Horizontal Slurry Pump Heavy Duty Mud Pump
Long Life Horizontal Slurry Pump Heavy Duty Mud Pump
Long Life Horizontal Slurry Pump Heavy Duty Mud Pump
Long Life Horizontal Slurry Pump Heavy Duty Mud Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJ
Certification :
ISO9001
Place of Origin :
SIchuan, China
MOQ :
1 set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Theory :
Centrifugal Pump
Flow :
4 ~ 3000 m³/h
Head :
10 ~ 130 m
Structure :
Single-stage
Speed :
1450rpm
Material :
chrome alloy
Product name :
Sludge Slurry Pump for Sale
Voltage :
380V or higher
Description

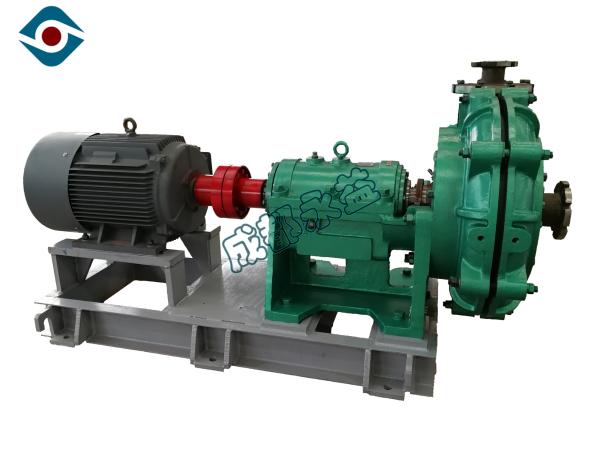

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump for Mining Industry

Product Description

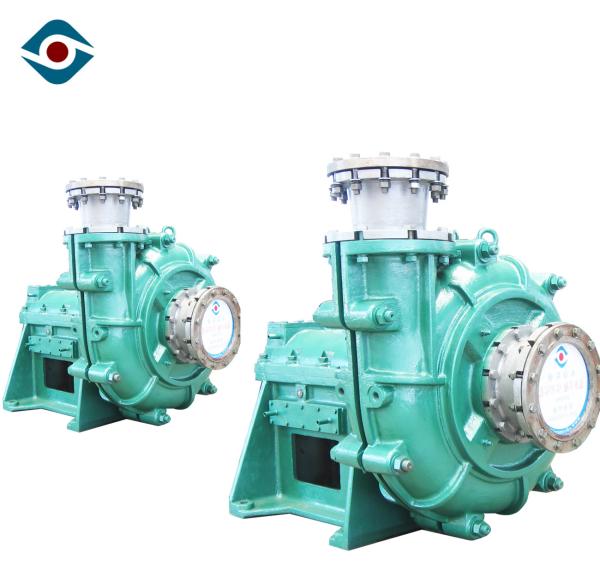

ZJ-series is single stage single-suction cantilever centrifugal slurry pump.

ZJ-series slurry pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.

Geometrical shape of its flow passage components is suitable for flow condition of medium.

Technical Data

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump

Parameter

Model Clear Water Performance

Flow Q

 Head Rotating speed n Shaft power (Pa) Effectiveness η
(m³/h) m r/min kw %
300ZJ(G)-I-A 704-2333 30.6-80 490-980 135-505 66-81
250ZJ(G)-I-A 405-1480 29.1-128.7 730-980 58.3-652 54-76.9
200ZJ(G)-I-A 256-976 28-133.7 730-980 60.3-448.1 50-79.6
150ZJ(G)-I-A 164-600 19.4-91.2 730-980 15.8-161.5 46.1-74.6
100ZJ(G)-I-A 86-360 16-100.2 980-1480 6.7-105.5 58.7-70.4
80ZJ(G)-I-A 60-242 15.7-109.8 980-1480 5.5-115.9 38.8-66.7
65ZJ(G)-I-A 28-69 11.2-34.8 960-1460 1.7-10.8 54.2-63.5
50ZJ(G)-I-A 31-111 34.3-110.7 970-1480 9.7-66.9 12.2-45.1
40ZJ(G)-I-A 9-23 9.1-44.6 1400-2900 0.3-4.7 33.2-52.4

Design Details

  1. Large capacity bearings can withstand high loads including thrust and longer bearing life

  2. Impeller and liner are enhanced and can perform better.

  3. liner can move axially to minimise front impeller gap to reduce wear.

  4. Interchangeable anti-corrosive wet parts are made customized elastomer materials, easy to maintain.

  5. Standard seal is used in ZJ-series slurry pump, which has strong shock resistance characteristic.

Application

The centrifugal slurry pump is used to transport solid and liquid that can be widely used to the deparments of metallurgy, mine, coal, electric power, chemical&industry, food, sewage treatment and channel dredging, etc. we can use these pumps in industry field like: Alumina, asbestos, bauxite, biulding products, cement, wolfram&scheelite, water & sewage utilities, copper, electric, iron ore, lead&zinc, mineral sands, sugar,tin, oil shale, paper&pulp and tobacco.

Installation Dimension

Single base

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump


Sharing Base

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump

FAQ

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
