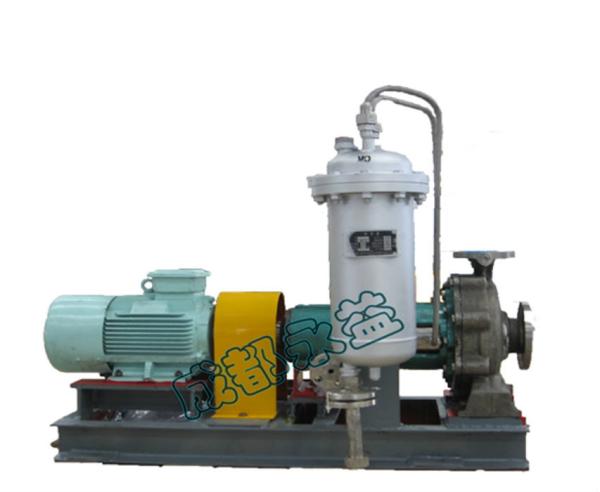

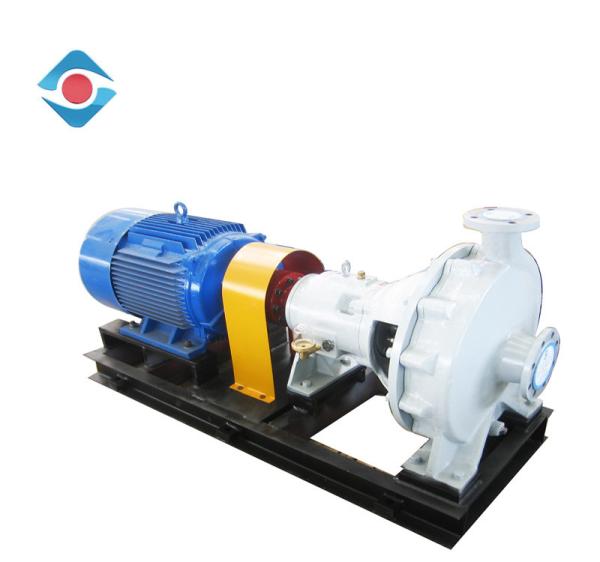

220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise
220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise
220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise
220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Certification :
ISO9001
Capacity Rate :
2040 m3 / h
Head Rate :
300m
Voltage :
380V/440V, 50Hz/60Hz
Flange :
GB, DIN, ANSI, HG
OEM :
Acceptable
Temperature :
-80℃-450℃
Description

220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise

Specification Data

Technical Parameter

DN

25-400mm

Flow Q

<2600m3/h

Head H

<250m

Pressure P

<2.5MPa

Temperature T

-80℃-450℃

Mainly Usage

1. Inorganic and organic acids of various temperatures and concentrations
2. Alkaline solution of various temperature and concentration
3. Salt solution of various temperature and concentration
4. Various liquid petrochemical products, organic compounds, corrosive raw materials and products

Structure


220V Single Phase Back Pullout Horizontal Chemical Pumps with Sealing Fluid System Low Noise

102.00

pump body

161.00

pump cover

183.00

Support foot

210.00

shaft

230.00

impeller

320.00

Antifriction bearing

320.01

Antifriction bearing

330.00

Bearing bracket

360.00

Bearing cover

360.01

Bearing cover

400.00

Flat gasket

400.01

Flat gasket

412.00

O ring

412.01

O ring

433.00

Mechanical seal

433.01

Mechanical seal

471.00

Sealing cover

471.01

Sealing cover

502.00

Casing wear ring

502.01

Casing wear ring

502.02

Casing wear ring

503.00

Impeller wear ring

503.01

Impeller wear ring

507.00

deflrctor

507.01

deflector

524.00

sleeve

524.01

sleeve

638.00

Constant-level-oiler

644.00

Lubricating ring

673.00

Vent filter

710.00

pipe

915.00

Threaded insert

922.00

Impeller nut

923.00

Bearing nut

932.00

circlip

Feature

  • The impeller has two types including standard closed impeller and open impeller. The closed impeller has strong adaptability to working conditions and has the feature of high efficiency and low cavitation. The open impeller is suitable for conveying vapor-liquid and solid-liquid two-phase media.
  • Horizontal suction and vertical discharge, the flange is subjected to a large pipe load. Flanges follow the GB, DIN, ANSI, HG standards. The suction flange and the discharge flange usually with the same pressure rating.
  • The replaceable pump body and impeller ring protect the wearable area. According to the working conditions, the axial force can be balanced by the front ring or the ring with balance hole. The residual axial force is absorbed by the thrust bearing.
  • The pump cover can be cooled and insulated. The shaft seal can be filled with coolant, flushing fluid and sealing fluid. The standard pipe is designed according to the API.

​

Overcurrent Parts Material

  • F33: special duplex stainless steel F33 invented by our company has better wear resistance than CD4MCu and FCr30.

  • Other Material: 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc.

Packing and Shipping

OEM

Acceptable
MOQ 1 Set
Price Negotiable
Port Shanghai
Payment T/T, L/C, Western Union
Supply ability 300 sets/month
Packaging Free Fumigation Export Wooden Box
Delivery time 25 days according to the order quantity
Shipping By sea, by air, by train
Order FCL, LCL
