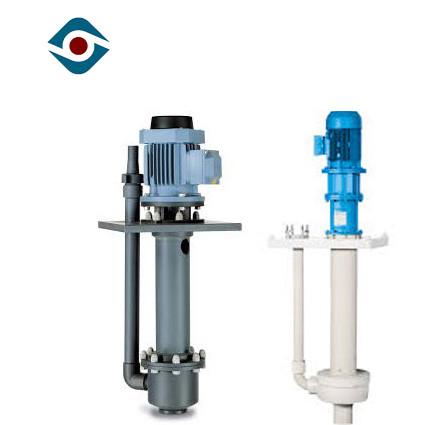

Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing
Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing
Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing
Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZAL
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 Set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Theory :
Centrifugal
Flow :
5-500m3/h
Head :
10-70m
Warranty :
1 Year
Frequency :
50 /60 Hz
Pressure :
High Pressure
Fuel :
Electric
Voltage :
220V/380V
Description

Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing

Yongyi Vertical Pumps

Yongyi vertical pumps covers many models, such as single-stage, double case, submersible, semi-submersible, slurry and solid handling and sump. They all have the cerficication of either ISO, ASME or API. Our verticasl pumps not only provide excellent wear life properties, but they are an industry standard for integrated pump design. Numerous sizes, hydraulics and material combinations are particularly well suited for use in mining, metallurgy, power, coal, chemicals, building materials and other industries.

Structure

Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing

Product Show

Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing

Parameter

Model

rotate speed n=2950r/min

rotate speed n=1475r/min

Flow

(m3/h)

Head

(m)

ρ=1

ρ=1.35

Flow

(m3/h)

Head
(m)

ρ=1

ρ=1.35

Motor power
(KW)

Motor power
(KW)

ZAL25-200

7.5-11.5

28-49

2.2-5.5

3-7.5

4-5.8

6.5-12

0.75-1.1

0.75-1.1

ZAL25-250

10.8-12.5

46-78

5.5-11

7.5-15

5.4-6.3

11.5-19.5

1.1-1.5

1.5-2.2

ZAL25-315

15.3-20

74-130

15-30

22-37

7.6-10

18.5-32

2.2-3

2.2-4

ZAL40-160

20-28

16-33

2.2-5.5

3-7.5

9.5-14

4.5-8

0.75-1.1

0.75-1.1

ZAL40-200

18-29

20-53

4-11

5.5-15

9.5-14.5

7-13

1.1-1.5

1.1-2.2

ZAL40-250

21-32

47-78

7.5-18.5

11-22

10.5-16

11-19.5

1.1-3

1.5-4

ZAL40-315

29-42

61-115

15-37

22-45

15-21

15-29

3-5.5

4-7.5

ZAL50-160

31-50

17-34

3-11

4-15

16.5-25

4-8.4

0.75-1.5

1.1-2.2

ZAL50-200

43-62

28-82

7.5-18.5

11-22

22-31

7-13

1.1-3

1.5-3

ZAL50-250

50-70

45-82

15-30

18.5-37

26-35

11-20

2.2-4

3-5.5

ZAL50-315

57-87

57-115

22-55

30-75

30-44

14-28

3-11

4-11

ZAL50-400

60-82

102-194

45-110

75-160

30-41

25-48

7.5-15

11-22

ZAL80-160

66-94

17-32

5.5-15

7.5-18.5

34-47

4-8

1.1-2.2

1.1-3

ZAL80-200

70-103

30-54

11-30

15-37

36-51

7.5-12.5

1.5-4

2.2-5.5

ZAL80-250

87-127

45-82

22-45

30-75

46-64

11-20

3-7.5

4-11

ZAL40-315

90-141

74-127

37-90

45-132

45-70

18-33

5.5-15

7.5-18.5

ZAL80-400

116-171

95-187

75-160

90-220

53-85

25-46

11-22

15-30

ZAL100-160

110-162

12-29

7.5-22

11-30

55-81

3-7.2

1.1-3

1.5-4

ZAL100-200

135-193

26-50

18.5-45

30-55

70-95

6-12.5

3-5.5

3-7.5

ZAL100-250

170-230

44-79

37-75

45-90

90-115

10-20

5.5-11

7.5-15

ZAL100-315

170-250

71-126

75-132

75-200

86-125

17.5-31

11-18.5

11-30

ZAL100-400

224-300

105-194

110-250

160-355

115-150

26-48

15-37

22-45

ZAL150-250

310-190

40-74

55-110

75-160

155-195

10-18.5

11-15

11-22

ZAL150-315

310-442

68-125

90-250

132-355

150-220

17-32.5

15-30

18.5-45

ZAL150-400

400-520

113-502

200-400

280-500

200-260

28-51

30-55

37-75

ZAL150-500

　

　

　

　

208-300

45-77

45-110

75-132

ZAL150-630

　

　

　

　

220-360

60-115

75-200

110-250

ZAL200-250

470-610

32-72

75-160

90-220

240-305

8-17.5

11-22

15-30

ZAL200-315

480-710

65-122

132-355

185-450

350-350

15-30

18.5-45

22-55

ZAL200-500

　

　

　

　

330-495

48-84

75-185

90-220

ZAL200-560

　

　

　

　

350-540

62-105

110-250

132-355

ZAL200-630

　

　

　

　

372-580

75-132

132-315

185-450

ZAL250-315

　

　

　

　

424-545

13-27

30-55

37-75

ZAL250-400

　

　

　

　

500-660

24-49

53-132

75-160

ZAL250-500

　

　

　

　

630-800

42-82

110-280

160-400

ZAL250-560

　

　

　

　

665-860

57-106

160-400

250-560

ZAL300-400

　

　

　

　

780-1050

26-48

90-200

132-280

ZAL300-500

　

　

　

　

870-1240

42-78

160-450

250-560

ZAL300-560

　

　

　

　

950-1340

56-104

280-560

400-800

ZAL300-630

　

　

　

　

950-1450

75-132

355-1000

500-1400

ZAL300-500

　

　

　

　

1300-1870

38-74

220-630

315-1000

ZAL300-560

　

　

　

　

1500-2040

54-98

355-900

500-1250

Package

Long-Shaft Industrial High Volume Submersible Chemical Pumps Steam Pumping Sliding Bearing

Application

1. Daily Chemicals:Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
2. Pharmacy:Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
3. Chemical Industry:Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
4. Other Industry:Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
