Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials
Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
10USD/PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000PCS
Delivery Time :
5-8 working days
Packaging Details :
Strong wooden box for Global shipping
Description

Aluminum Nitride Large Particle Filler Powder


Aluminum nitride large particle filler powder is produced by self developed aluminum nitride powder. After spraying, granulation and sintering, it is screened and packed. The products are widely used in TIM (thermal interface material).


Advantage:

1. Crushing: Mechanical equipment is used for crushing, which greatly reduces the agglomeration of powder in microscopic observation, and reduces the sense of particle and roughness in tactility.
2. Particle size detection: The particle size detection shall be carried out for filler powder after crushing and classification, and the particle size is no longer controlled only by sieve mesh. At the same time, the particle distribution of the improved classification is narrower than that before.
3.The products with different particle sizes can be customized according to customer requirements.

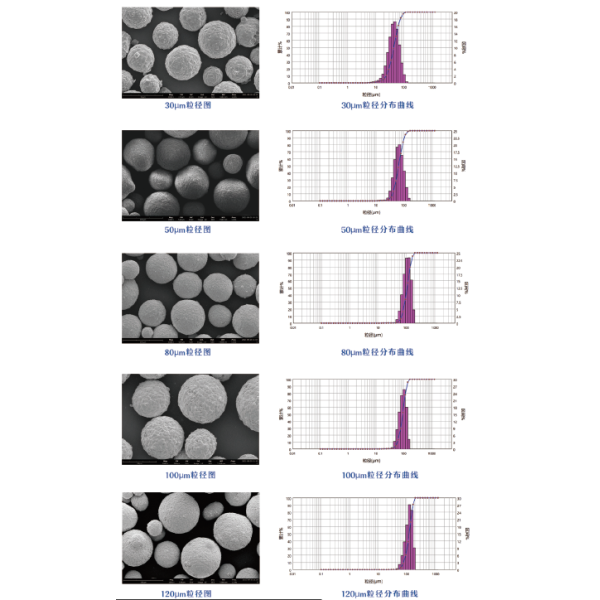

Parameter:

Specifications TLA30 TLA50 TLA80 TLA100 TLA120
D50/μm 35±5 50±5 80±5 100±5 120±5
Appearance White White White White White
Spherical >95% >95% >95% >95% >95%
Apparent density/g*cm² 1.5~1.6 1.6~1.7 1.65~1.75 1.65~1.75 1.65~1.75
Tap density/g*cm² 1.8~1.9 1.85~2.05 1.95~2.1 1.95~2.1 1.95~2.1
0/wt% <2 <2 <2 <2 <2
AlN/wt% >96 >96 >96 >96 >96


Laser particle size analysis conditions

Uitrasound for 3 mintutes

Circulating pump speed: 800 rpm

Material refractive index: 2.11

Refractive index of medium: 1.361
