Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
10USD/PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000PCS
Delivery Time :
5-8 working days
Packaging Details :
Strong wooden box for Global shipping
Description

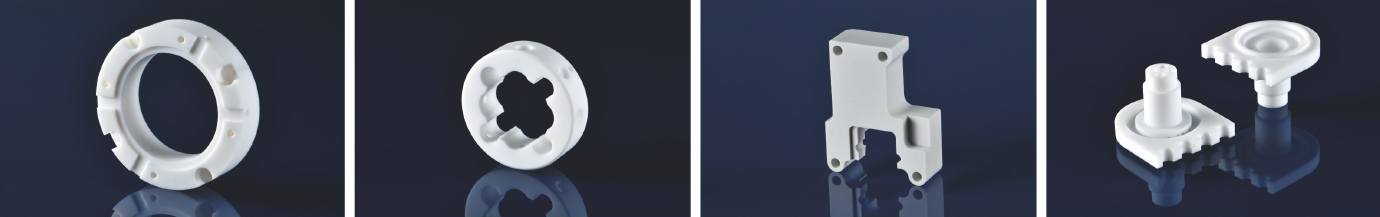

Macor Machinable Ceramic


Main Features of Macor:

0 porosity, 0 outgassing, low thermal conductivity, excellent electrical insulation


Main Features of Shapal Hi-M:

0 porosity, 0 outgassing, high thermal conductivity, superior electrical insulation


Machinable ceramics generally refer to a type of special ceramic that can be directly processed using traditional CNC metal cutting tools. The most common machinable ceramics currently are: boron nitride, glass-ceramic (with Macor produced by Corning in the United States being the most well-known), shapalHi-M (machinable aluminum nitride), and others. ZG has conducted in-depth research in the field of machinable ceramics, especially having outstanding advantages in the materials Macor and shapalHi-M.


Material Properties:


 Macor Shapal.Hi-M soft
Color White Grey
Mechanical properties

Density(g/cm2) 2.52 2.88
Porosity 0 0
Compressive strength 345(MPa) 100(kg/mm2)
Flexural Strength(MPa) 94 300
Fracture toughness(MPam1/2) 1.53 /
Hardness(kg/mm2) Brinell hardness250 Vickers hardness380
Young's modulus 66.9(MPa) 1.8*10000(kg/mm2)
Poisson's ratio 0.29 0.31


Thermal performance:

Thermal conductivity@25C 1.46W/mk 92
Thermal expansion@25-300C 90*10-7/C 4.8*10-6/C
Thermal expansion@25-700C 123*10-7/C 4.9*10-6C
Thermal shock / 400C
Highest temperatureC 800(Continuous operation)1000(No-load) 1000(Air)1900(Non-oxidizing atmosphere)
