Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
10USD/PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000PCS
Delivery Time :
5-8 wokling days
Packaging Details :
Strong wooden box for Global shipping
Description

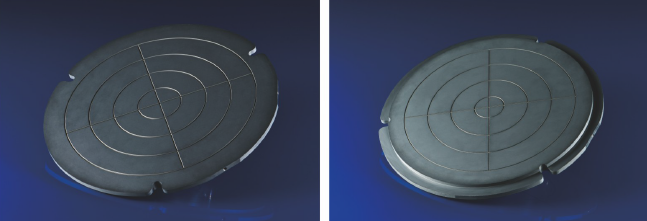

Silicon Carbide (SiC) Plate

Silicon carbide (SiC) shares many characteristics with diamond—it is one of the lightest, hardest, and strongest technical ceramic materials. It possesses excellent thermal conductivity, acid resistance, and low thermal expansion. Silicon carbide is an excellent material when physical wear is a significant consideration, due to its exceptional erosion and abrasion resistance.

  • Pressureless Sintered Silicon Carbide Ceramics
  • Exceptional erosion and abrasion resistance
  • Suitable for nozzles, sandblasting nozzles, and cyclone separator components
Mechanical Properties
Property Unit Silicon Carbide
Density g/cm³ 3.15
Vickers Hardness Hv0.5 2650
Flexural Strength MPa 450
Compressive Strength MPa 2650
Elastic Modulus GPa 430
Fracture Toughness MPa*m¹/² 4
Poisson's Ratio
0.14
Young's Modulus GPa 430
Silicon Carbide Raw Material Purity % 99
Thermal Properties
Property Unit Silicon Carbide
Thermal Conductivity at 25°C W/mK 110
Melting Point °C 2800
Specific Heat J/g*K 0.8
Linear Expansion Coefficient 10⁻⁶/K 4
Electrical Characteristics
Property Unit Silicon Carbide
Dielectric Constant 1MHz 10
Breakdown Voltage V/cm 1×10⁶
Dielectric Loss 1MHz 0.001
Resistivity Ω*cm 10²-10⁶
