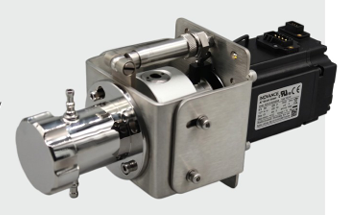

Ceramic Valveless Metering Pump
Ceramic Valveless Metering Pump
Ceramic Valveless Metering Pump
Ceramic Valveless Metering Pump
Ceramic Valveless Metering Pump
Ceramic Valveless Metering Pump
Specifications
Model Number :
MS
MOQ :
1 PC
Delivery Time :
5-8 work days
Brand Name :
ZG
Packaging Details :
Strong wooden box for Global shipping
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Price :
10USD/PC
Supply Ability :
1000 PCS
Certification :
CE
Place of Origin :
China
Description

Ceramic Valveless Metering Pump — Product Specification & Description

1. Product Overview

The Ceramic Valveless Metering Pump is a positive-displacement dispensing system engineered for ultra-precise liquid transfer and micro-filling. Utilizing a single rotating and reciprocating ceramic plunger, this pump eliminates internal check valves, elastomeric seals, and dynamic packings. Designed with sapphire-hard technical ceramics, it delivers zero-maintenance operation, pulse-free flow, and exceptional resistance to aggressive chemicals and abrasive slurries.

2. Key Features & Advantages

  • Valveless Positive Displacement: Combines 360° plunger rotation with axial displacement to direct fluid inlet and outlet ports, eliminating check valve clogging, lagging, and leakage.

  • Extreme Accuracy & Repeatability: Provides precise volumetric dosing with dispensing accuracy of $le pm0.5%$ and high repeatability ($le 0.2%$).

  • Wear-Resistant Ceramic Fluid Path: High-purity zirconia ($ZrO_2$) or alumina ($Al_2O_3$) pistons and sleeves feature near-zero clearance fits ($le 2mutext{m}$), offering self-lubricating, non-galling performance over millions of cycles.

  • Broad Chemical Compatibility: Chemically inert ceramic wetted parts resist strong acids, harsh alkalis, organic solvents, and sterile biological fluids without leaching ions or shedding particulates.

  • Low Maintenance & Long Service Life: The absence of dynamic seals and check valves minimizes downtime, wear, and replacement costs.

3. Technical Specifications

Property / Parameter Specification Value
Dispensing Volume Range 0.5 $mutext{L}$ to 50 mL per stroke (Customizable)
Dispensing Accuracy $le pm0.5%$
Dispensing Repeatability $le 0.2%$
Wetted Materials High-Purity Zirconia ($ZrO_2$), Alumina ($Al_2O_3$), PEEK / PTFE
Max Operating Pressure Up to 1.2 MPa (12 bar)
Viscosity Range 0.1 to 20,000 mPa·s (cps)
Motor Drive Options Stepper Motor, Servo Motor, or DC Brushless Motor
