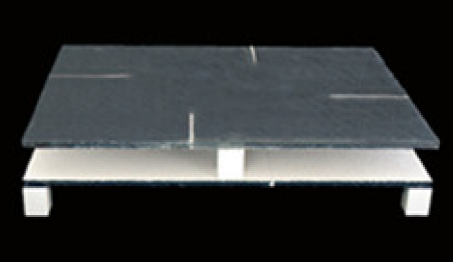

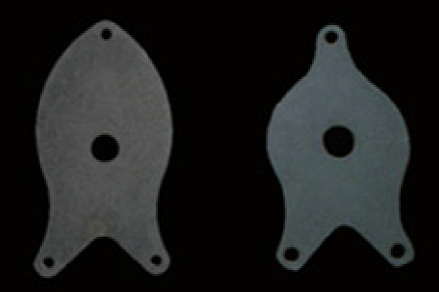

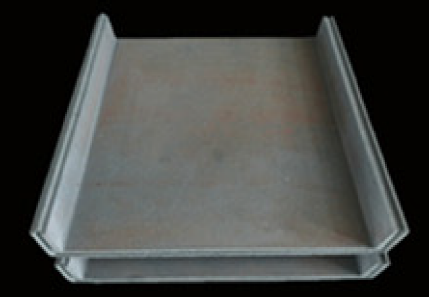

Silicon carbide setter plate
Silicon carbide setter plate
Silicon carbide setter plate
Silicon carbide setter plate
Silicon carbide setter plate
Silicon carbide setter plate
Specifications
Model Number :
MS
MOQ :
1 PC
Delivery Time :
5-8 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Price :
10USD/PC
Certification :
CE
Supply Ability :
1000 PCS
Place of Origin :
China
Packaging Details :
Strong wooden box for Global shipping
Brand Name :
ZG
Description

Silicon Carbide Setter Plate — Product Specification & Description

1. Product Overview

The Silicon Carbide (SiC) Setter Plate is a high-performance refractory tray engineered for high-temperature sintering and heat-treatment applications. Renowned for its ultra-high thermal conductivity, outstanding mechanical strength at elevated temperatures, and superior thermal shock resistance, SiC setter plates enable rapid heating and cooling cycles while maintaining dimensional flatness and preventing workpiece warping or deformation.

2. Key Features & Advantages

  • High Thermal Conductivity: Facilitates rapid and uniform heat distribution across the plate, significantly reducing kiln energy consumption and shortening cycle times.

  • Extreme Thermal Shock Resistance: Capable of withstanding aggressive thermal cycling and rapid cooling without cracking or fatigue.

  • High Load-Bearing Strength & Low Creep: Retains excellent mechanical bending strength under heavy loads at elevated temperatures up to 1650°C.

  • Chemical & Corrosion Resistance: Resists oxidation, acid, alkali, and chemical slag erosion in oxidizing, reducing, or vacuum atmospheres.

  • Optional Protective Coatings: Can be coated with high-purity Alumina ($Al_2O_3$), Zirconia ($ZrO_2$), or Yttria ($Y_2O_3$) to prevent chemical reaction/sticking with sensitive workpieces.

3. Technical Specifications by Material Grade

Property / Parameter R-SiC (Recrystallized) SiSiC (Reaction-Bonded) N-SiC (Nitride-Bonded)
SiC Content (%) ≥ 99% ≥ 88% ≥ 75%
Max Working Temp (°C) 1650°C 1380°C 1450°C
Bulk Density (g/cm³) 2.68 – 2.72 3.02 – 3.05 2.65 – 2.70
Flexural Strength (20°C) ≥ 100 MPa ≥ 250 MPa ≥ 45 MPa
Thermal Conductivity (W/m·K) ≥ 30 ≥ 45 ≥ 16
Apparent Porosity (%) 13% – 15% ≤ 0.1% (Dense) 14% – 16%
