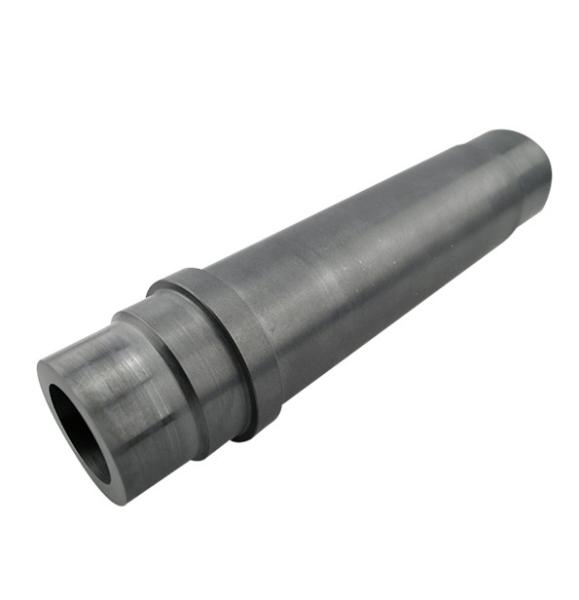

Silicon Nitride Riser Tube
Silicon Nitride Riser Tube
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Strong wooden box for global shipping
Material :
Silicon Nitride Si3N4
Size :
Customized
Color :
Black
Features :
high hardness; high corrosion resistance; low density; stability in a wide range of temperatures; precision machining capability.
Description

Silicon Nitride (Si3N4) Riser Tube

Advantages:

  • Excellent chemical stability,reduces impurity'bring in,improved the quality of aluminum casting products.
  • High temperature resistance,which remain the same strength and hardness when the temperature of aluminum liquid comes to 800℃-900℃.
  • High density with low porosity,it can be long-term using in aluminum liquid,which decrease the residue,in order to improve the service life and reduce the maintenance cost.
  • It is non-wetting to aluminum liquid,which can highly reduce the aluminum attachment on the surface of the tube.
  • Excellent resistance to thermal shock,which can improve the working life

Silicon Nitride Riser Tube

Due to the high density with low porosity, high temperature stability,excellent resistance to thermal shock and excellent corrosion resistance,silicon nitride material has a very broad application prospects in the cast aluminum industry on equipment parts.Currently,Our company has developed andproduced series of high performance silicon nitride ceramic products for cast aluminum industry using,including silicon nitride riser tube,silicon nitride heater protection tube,rotating shaft,rotor and silicon nitride protection tube for thermocouple,etc..

Silicon Nitride Riser Tube

Silicon Nitride Riser Tube

Silicon Nitride Related Data

Main component 99%Al2O3 S-SiC ZrO2 Si3N4
Physical
Property		 Density g/cm3 3.9 3.1 6 3.2
Water Absorption % 0 0.1 0 0.1
Sinter Temperature °C 1700 2200 1500 1800
Mechanical
Property		 Rockwell Hardness HV 1700 2200 1300 1400
Bend Strength kgf/mm2 3500 4000 9000 7000
Compression Intensity Kgf/mm2 30000 20000 20000 23000
Thermal
Property		 Maximum working
temperature		 °C 1500 1600 1300 1400
thermal expansion
coefficient
0-1000°C		 /°C 8.0*10-6 4.1*10-6(0-500°C) 9.5*10-6 2.0*10-6(0-500°C)
5.2*10-6(500-1000°C) 4.0*10-6(500-1000°C)
Thermal Shock resistance T(°C) 200 250 300 400-500
Thermal Conductivity W/m.k(25°C 31 100 3 25
300°C) 16 100 3 25
Electrical
Property		 Resisting rate of Volume ◎.cm 　 　 　 　
20°C >1012 106-108 >1010 >1011
100°C 1012-1013 – – >1011
300°C >1012 – – >1011
Insulation Breakdown
Intensity		 KV/mm 18 semiconductor 9 17.7
Dielectric Constant (1 MHz) (E) 10 – 29 7
Dielectric Dissipation (tg o) 0.4*10-3 – – –
