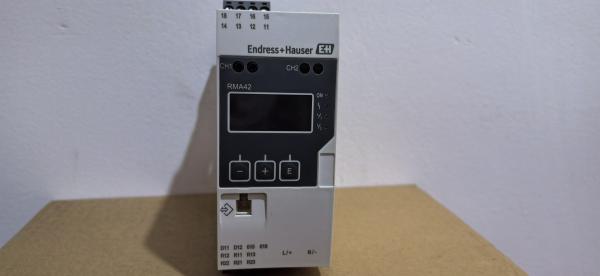

Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Specifications
Brand Name :
Endress+Hauser
Model Number :
RMA42-1082/0(RMA42-AAC)
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Approval :
Non-hazardous area
Input; Output :
1x universal; 1x analog + 2 relay
Display :
LCD 7 segment Multicolour Bargraph TAG unit Colour change in case of failure
Power Supply :
Wide range power supply 24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz
Gross weight :
0.320 Kilogram
Country of origin :
DE
Description

Endress+Hauser Process Transmitter + Control Unit RMA42

Analog measured values are indicated, evaluated and calculated by the process transmitter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

The RMA42 process transmitter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.

Plant and apparatus engineering

Control rooms and cabinets

Process control, recording and supervision

Signal adjustment and conversion

Overfill protection (WHG)

Measuring principle

Process transmitter

Measuring principle

Process transmitter

Function

Universal process and temperature transmitter with control unit

Loop power supply

24 V intrinsically safe loop power supply

Power Supply

Wide range power supply 24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz

Input

2 x universal (current, voltage, R, RTD, TC, resistance)

Output

2 x Analog (current, voltage)

Software functions

Internal software for calculations, linearization, limit monitoring
Monitoring of sensor wires according NAMUR NE43
Application package differential pressure measurement

Certificates

ATEX
FM
NEPSI
CSA
UKCA
UR C/US
marine approval
KTA
German WHG overfill protection

SIL

2

Display

LCD
7 segment
Multicolour
Bargraph
TAG unit
Colour change in case of failure

Interface

Not defined

Dimensions (WxHxD)

45 x 115 x 118 mm (1.77" x 4.53" x 4.65")
