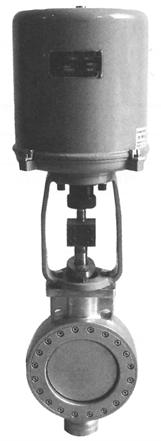

ZDJW Electric Control and Shut-off Butterfly Valve
The ZDJW type electronic double-eccentric electric control butterfly valve is composed of an electronic actuator and a double-eccentric butterfly valve.

It uses a power supply of 220V·AC, 50Hz, and is equipped with a servo amplifier, a position signal generator, a handwheel mechanism, torque limit switches, travel switches, and a valve position indicator. It can accept 4-20mA·DC signals output by industrial control instruments or computers to control the valve opening, and can simultaneously output 4-20mA·DC valve position feedback signals. This butterfly valve features an advanced structure, convenient operation, reliable shut-off, and small leakage. The valve seat is available in both soft seal and hard seal types. It is suitable for occasions with large diameters and large flows. Due to its self-cleaning function, it is particularly suitable for regulating thick turbid slurries and media containing suspended particles.
Basic Technical Parameters

Nominal Diameter

DNmm

 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800
Rated flow coefficient Kv 85 140 302 600 1022 1579 3136 5340 8250 11917 16388 21705 27908 43116 166000 271000
nominal pressure MPa 1.01.6
actuator model 381RSA-05 381RSB-10 381RSB-20 381RSC-50 381RSC-60 381RSD-150
output torque N-m 50 100 200 500 600 1500
input signal range 4-20mA·DC
Allowable pressure difference MPa 1.6 1.6 1.6 0.81 0.5 0.32 0.27 0.18 0.2 0.11 0.08 0.07 0.058 0.03 0.033 0.016
rated rotation angle 90°
full stroke time S 23 25 29 29 32
flow characteristic Approximately equal percentage
leakage class soft seal GB/T4213Ⅵ
hard seal GB/T4213Ⅳ
valve seat sealing type soft seal, hard seal
medium temperature ℃ -40～+180-40～+300
flange type wafer type, flange type

Materials of main parts and applicable temperature range
Valve body, valve plate ZG230-450 -40～+450℃
ZG1Cr18Ni9TiZG0Cr18Ni12Mo2Ti -250～+550℃
valve stem 2Cr131Cr18Ni9Ti -250～+550℃
valve seat seal reinforced polytetrafluoroethylene -40～+180℃
metal elastic steel plate -40～+250℃
-40～+200℃
packing XS450 rubber asbestos packing +450℃
flexible graphite -200～+600℃

Electric Control Shut Off Butterfly Valves Double Eccentric 4-20mA DC

Nominal Diameter DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800
ΦA 225 255 270 335 335 470
H 320 350 360 410 723 778 845 885 1025 1090 1180 1225 1270 1385 1755 1940
H1 55 65 75 110 120 135 180 210 235 274 305 330 350 400 460 520
