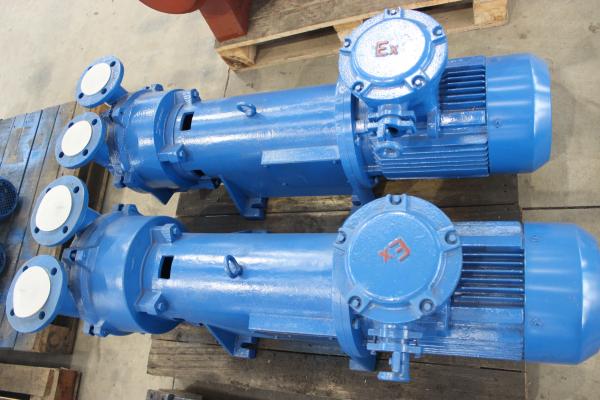

Commercial Single Stage Liquid Ring Vacuum Pump Stable Easy Installation
Commercial Single Stage Liquid Ring Vacuum Pump Stable Easy Installation
Commercial Single Stage Liquid Ring Vacuum Pump Stable Easy Installation
Commercial Single Stage Liquid Ring Vacuum Pump Stable Easy Installation
Specifications
Brand Name :
FUTEN
Model Number :
2FV6 500
Place of Origin :
HEFEI, ANHUI
MOQ :
5 UNITS
Delivery Time :
10 work days
Price :
Negotiable
Material :
Stainless steel, Carbon steel
Color :
Grey, blue, white, etc
Voltage :
380v, 415v, 460v, etc
Bearing :
NSK, SKF
Motor :
Siemens, ABB, WEG, WNM, etc.
Mechanical Seal :
Burgmann or John Crane
Motor Type :
Normal Motor, Explosion-proof Motor
Description
MODEL

Suction capacity(m3/h)

 Power(KW) Speed(rpm)

Operating liquid

rates(m3/h)

 Weight(kg)
2FV6 500 500 15 980 1.2 417

1: Pump impellers are directly installed onto the motor axes, save space, easy to install, easy to maintain and repair; 2: We use imported mechanical seal as a standard configuration; 3: Pump sets cavitation protection tube. While the pump is working under the utmost pressurein, protection tube can reduce harm to pump from cavitation erosion and reduce noise and vibration; 4: A unique flexible air vent, it can ensure max efficiency of FV5; 5: Y2 series motors used, protetcion level: IP54/IP55(usually IP44). Insulation level is F(usually B); 6: 2FV series use PTFE as sealing elementts that life cycle can be greatly extend; 7: Impeller: aluminum bronze or SS304 stainkess steel; 8: Optional materials of pump body: cast iron; SS304 stainless steel; SS316L; 9: Ultimate cacuum: 3.3KPa; 10: Working fluid closed cycle unit can be provided; 11: Pump can be configured with dual-use unit forms; 12: PLC automation control cabinet can be configured.
