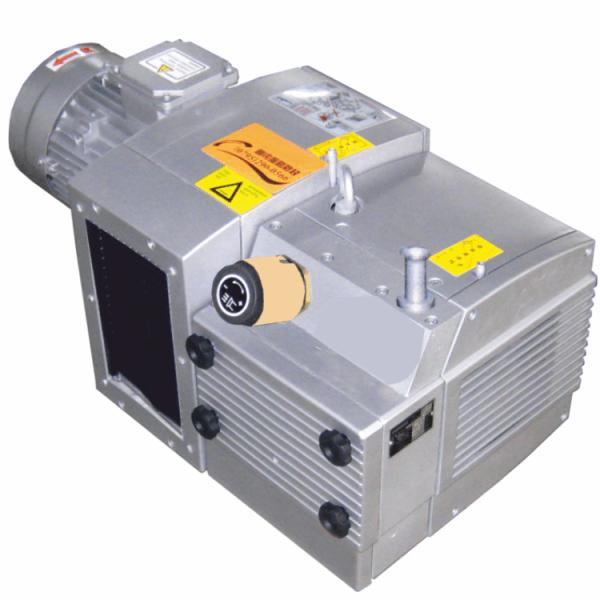

60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
Specifications
Brand Name :
EURO
Model Number :
KDE60
Place of Origin :
CHINA
MOQ :
1
Price :
Negotation
Payment Terms :
T/T
Delivery Time :
5-8 working days after get the payment
Packaging Details :
plywooden box
Model :
Oil Free Rotary Vane Vacuum Pump
Type :
KDE60
Motor Power :
3.0/3.6kW
Features :
Oil Free, Compact Design, High Efficiency
Warranty :
1 Year
Power :
50/60 Hz
Displacement :
60/72 m³/h
Three-phases :
230/400V ±10%
Pressure :
+1500mbar
Noise Level :
72dB
Weight :
69kgs
Description

60 m³/h rotary vane low-pressure compressor,oil-free, air-cooled,KDE60


Description

Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.

Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.


​Technical Data

TYPE AIR FLOW(m³/h) MOTOR POWER(kW) MOTOR VOLTAGE (V) Motor Speed(rpm)

Pressure

(mbar)

Noise

(dB)

 Weight (kgs)
50HZ 60HZ 50HZ 60HZ 50HZ/60HZ 50HZ 60HZ
KDE60 60 72 3 3.6 230/400V±10% 1450 1740 +1500 72 69
KDE80 80 96 4 4.8 230/400V±10% 1450 1740 +1500 74 77
KDE100 100 120 5.5 6.6 230/400V±10% 1450 1740 +1500 76 127
KDE140 140 168 7.5 9 230/400V±10% 1450 1740 +1500 82 146


Performance Curve


60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60

Dimensions


60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60


60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60




Feedback from clients

https://youtu.be/3ecsqle7bs4




Highlights of DE/KDE series:

  • Low operation and maintenance costs
  • Cool operation
  • Quiet operation-no silence enclosures necessary
  • No cycling times
  • Straightforward construction for fast and easy service on-site to reduce downtime


Applications

  • Pneumatic conveying
  • Printing industry
  • Food technology
