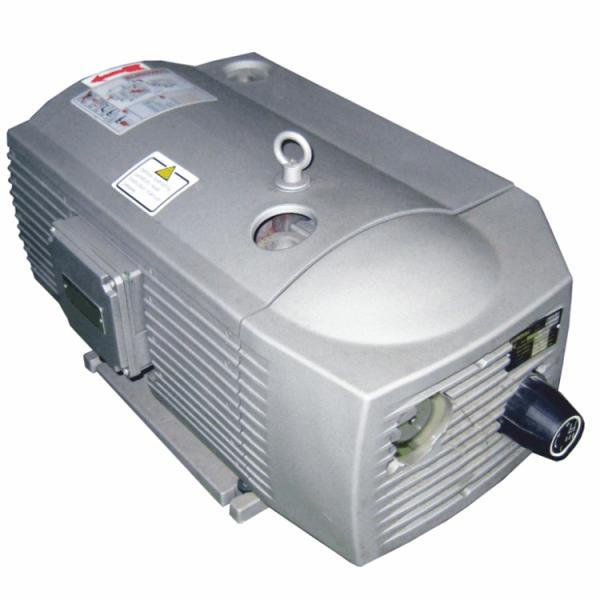

25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K
25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K
Specifications
Brand Name :
EURO
Model Number :
DE25K
Place of Origin :
CHINA
MOQ :
1
Price :
Negotation
Payment Terms :
T/T
Delivery Time :
5-8 working days after get the payment
Packaging Details :
plywooden box
Model :
Oil Free Rotary Vane Vacuum Pump
Type :
DE25K
Motor Power :
1.25/1.5kW
Features :
Oil Free, Compact Design, High Efficiency
Warranty :
1 Year
Power :
50/60 Hz
Displacement :
25/30 m³/h
Single Phase :
230V+-10%
Three-phases :
190-255V/330-440V
Pressure :
+1000mbar
Noise Level :
65dB
Weight :
26.5kgs
Description

25 m³/h dry-running low-pressure compressor,oil-free, air-cooled,DE25K


Description

Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.

Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.


​Technical Data

TYPE

AIR FLOW
(m³/h)

MOTOR POWER(kW)MOTOR VOLTAGE(V) (3P)MOTOR VOLTAGE(V) (1P)

Speed
(rpm)

Pressure
(mbar)

Noise
(dB)

Weight (kgs)
50HZ60HZ50HZ60HZ50HZ60HZ50HZ/60HZ50HZ60HZ
DE1010120.370.44

170-260V
/300-450V

202-300V
/350-520V

230V+-10%14201700+10006216
DE16K16K19.20.750.9

170-260V
/300-450V

202-300V
/350-520V

230V+-10%14201700+10006423.5
DE25K25301.251.5

190-255V
/330-440V

190-290V
/330-500V

230V+-10%14201700+10006536.5
DE40K40481.852.2

190-255V
/330-440V

190-290V
/330-500V

230V+-10%14201700+10006746



Performance Curve


25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K
25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K

Dimensions


25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K


25 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE25K




Feedback from clients

https://youtu.be/3ecsqle7bs4




Highlights of DE/KDE series:

  • Low operation and maintenance costs
  • Cool operation
  • Quiet operation-no silence enclosures necessary
  • No cycling times
  • Straightforward construction for fast and easy service on-site to reduce downtime


Applications

  • Refining process with closed loop: In the refining process, it is used for compressing and transporting various process gases, such as hydrogen, nitrogen, and oxygen, helping to complete chemical reactions, separation, and other operations. The dry-running design can prevent oil from contaminating the gas, ensuring the purity of the gas and the normal operation of the refining process.
  • Beverage industry: In the beverage production process, such as beer and beverage filling, compressed air is used to drive equipment, control the filling volume and speed, and ensure the smooth operation of the production line. At the same time, clean compressed air can also be used for bottle cleaning and disinfection to ensure the hygiene of beverage packaging.
