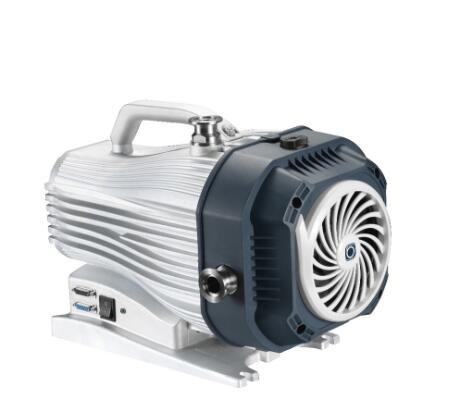

10m3/h Air Cooled Oil Free Scroll Pump Dry Scroll Vacuum Pump
10m3/h Air Cooled Oil Free Scroll Pump Dry Scroll Vacuum Pump
Specifications
Model Number :
IDSP10
Certification :
CE
Place of Origin :
CE
MOQ :
1 set
Price :
$1800-4300
Supply Ability :
500 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Payment Terms :
T/T
Ultimate Vacuum :
0.008mbar (0.8Pa)
Color :
Sky Blue, Grey
Pumping Speed :
10m³/h (3L/s)
Material :
Cast Iron
Operating Temp. :
5~40℃
Dimensions :
430*274*305mm
Surface :
Painting
Weight :
28kgs
Input Voltage :
1-phase 100-120/200-240
Description

10 m³/h Dry Scroll Vacuum Pump IDSP10, Sky Blue Air-cooled Oil-Free

Description

The scroll pump is a new kind of oil-free mechanical pump with features of simple construction, good sealing, high vacuum, etc. As a high-technology product, it has highly technical requirements in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean processes and is popular used in the market. In order to meet the featured application requirements of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.

  • Clean operation
  • Low maintenance
  • Wide operating range
  • High pumping speed
  • Quiet operation
  • Compact design

​Technical Data

Model IDSP10
Nominal rotational speed rpm 1800
Displacement m³h-1 10
Motor power W 400
Ultimate Vacuum mbar 0.008
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 54
Inlet flange - KF25
Exhaust flange - KF25
Max water vapour pumping rate gh-1 136
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 28
Cooling Method - Air-cooled

Performance Curve

10m3/h Air Cooled Oil Free Scroll Pump Dry Scroll Vacuum Pump

Dimensions

10m3/h Air Cooled Oil Free Scroll Pump Dry Scroll Vacuum Pump

Application

  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)
