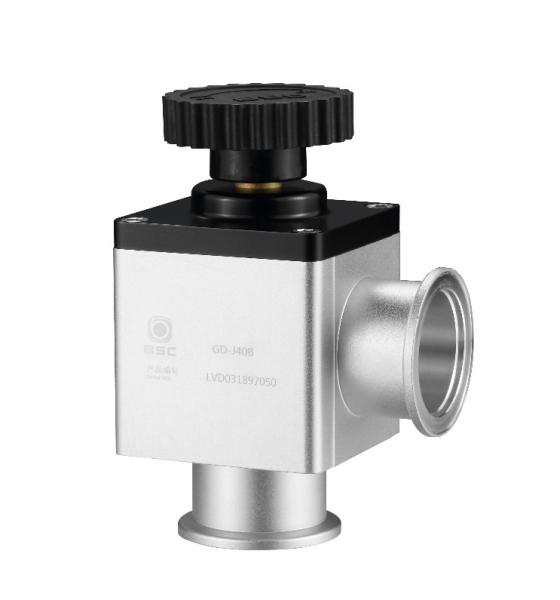

KF40 Manual Type High Vacuum Angle Valve GD-J40B Model Dust Proof
KF40 Manual Type High Vacuum Angle Valve GD-J40B Model Dust Proof
Specifications
Model Number :
GD-J40B
Certification :
ISO 9001,ISO14001, OHSAS18001,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
＄88-＄1300
Packaging Details :
Carton
Brand Name :
KACO
Payment Terms :
T/T
Shell Material :
Al alloy
Nominal Diameter :
40mm
Body Baking Temp :
120
Compressed air :
Manual vacuum angle valve
switching cycles :
1000 000
Installation Location :
Anywhere
Description

High Vacuum GD series Manual Baffle Valve, 40mm, GD-J40B

Structural Features:

  • Standardized, modular design, easy to replace and repair;
  • Easy to clean and dust-proof design;

Applications:

This valve is suitable for use with air and non-corrosive gases as the working medium.

It is used to cut off or connect the important components of the vacuum pipe.

Widely used in chemical, light industry, metallurgy, petroleum, machinery, electronics, and other industries

Technical Parameter :

Model GD-J40B
Pressure Range Pa 1×10-6Pa～1.2×105Pa(Sylphon seal)
1×10-5Pa～1.2×105Pa(Fluoro-ring seal)
Nominal Diameter mm 40
Percolation Pa·L/s ≤1.3×10-7
First Maintenance Cycle Time per 1000 000(Sylphon seal)
600 000(Fluoro-ring seal)
Body Baking Temp. ℃ ≤120
On or off time s ≤1
Opening/Closure Time s Manual Operation Time
Position Indication Mechanical Indicator
Installation Location — Anywhere
Ambient Temp. ℃ 5~40

DRAWING:

KF40 Manual Type High Vacuum Angle Valve GD-J40B Model Dust Proof
