Specifications
Model Number :
BSF120B
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
China
MOQ :
1 set
Price :
$25-$580
Packaging Details :
wooden case
Brand Name :
KACO
Payment Terms :
T/T
Model :
BSF120
Filter Specification :
4*100
Baosi Pump :
DRV175/DRV275
Max processing flow :
1600m³/h
Filter Element :
Fiberglass
Weight :
30 kgs
Description

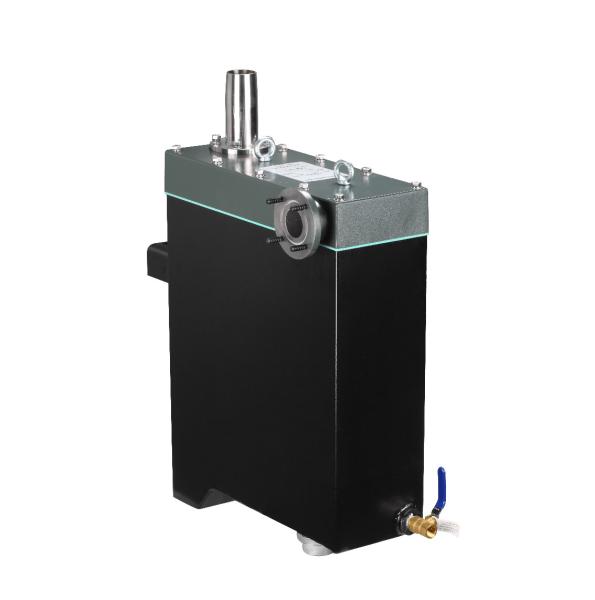

400L/s BSF120B oil mist filter, oil mist trap specially for oil rotary vacuum pump

Description:

When the oil rotary vacuum pump is operated at atmospheric pressure or under low vacuum, the oil is discharged together with the pumped gas.

This kind of exhaust gas is composed of many tiny oil droplets and is exhausted in the form of smoke through the pump outlet.

The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.

Application :

Used with an oil rotary vacuum pump or a vacuum system.

Parameter:

Model BSF120
Filter Specification 120L
Maximum Processing Flow m³/h(L/s) 1600(4*100)
Inlet VF50
Outlet φ50
Pump DRV175/DRV275
Weight(kg) 30

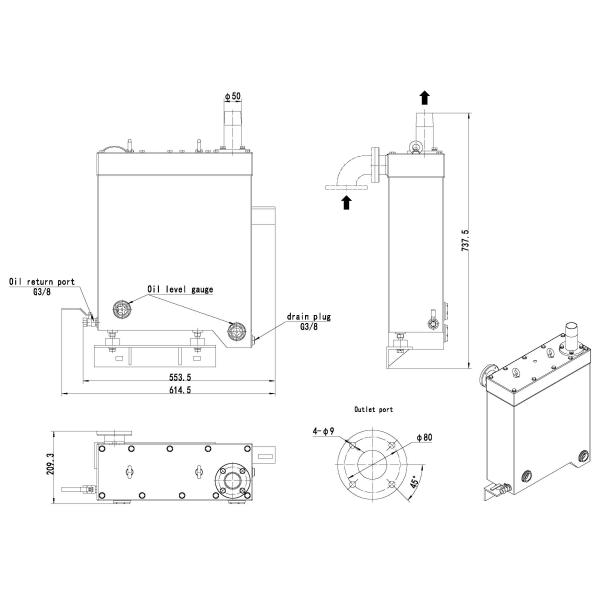

Outline Drawing:

400L/S High Volume BSF120B Oil Mist Filter Rotary Vacuum Pump Oil Mist Eliminator Filter400L/S High Volume BSF120B Oil Mist Filter Rotary Vacuum Pump Oil Mist Eliminator Filter

400L/S High Volume BSF120B Oil Mist Filter Rotary Vacuum Pump Oil Mist Eliminator Filter

Warranty

(1) The warranty period for this product is one full year from the date of B/L.
(2) During the warranty period, if the fault occurs under normal use conditions, the company is. responsible for free repair. Normal use conditions refer to the following conditions:
a. The ambient temperature of the oil mist filter is 10~40℃.
b. The type of exhaust gas and its temperature: dry air or dry nitrogen (0~40℃).
c. Use according to the instruction manual.
(3)During the warranty period, the following conditions will be repaired at a charge:
a. Failures that occur due to natural factors (earthquakes, typhoons, fires, etc.) or man-made.
b. Malfunctions that occur when used in a special environment, such as pollution.
c. Failures that occur when the product is used under the operating conditions described in the instruction manual (specification parameters, maintenance requirements, etc.).
d. Malfunctions that are judged by our company's technicians to be unsuitable for use conditions.
