Specifications
Brand Name :
KEDA
Model Number :
SCS-100T
Certification :
ISO9001:2018
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiated price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10~25 days
Packaging Details :
The platform of truck scale is nude packed and other electronic components is packed with carton box or wooden cases
Product Name :
100 ton weighbridge
Capacity :
100 Ton
Accuracy :
50KG
Platform size :
Custom
Power Supply :
220V/50HZ
Material :
Q235 steel plate
Structure :
U-shaped beams with 6pcs
Display :
LED
Description

AC/DC Power Supply U Beam Structure Digital 100 Ton Weighbridge

KEDA SCS Truck Scale Introduction:

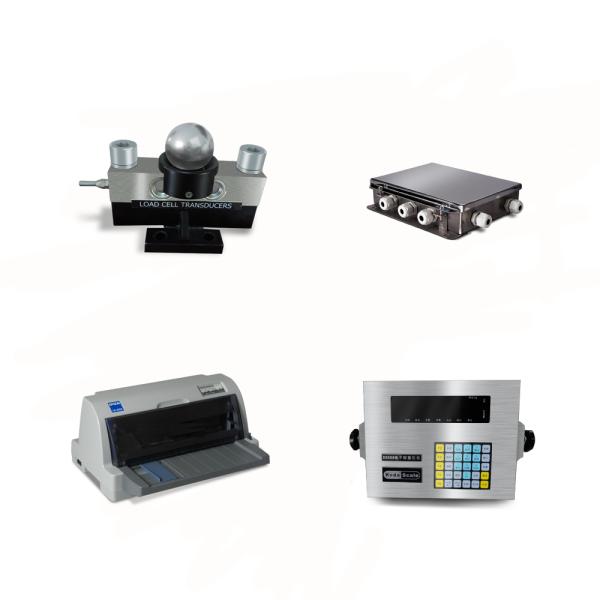

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

Features:

  •  Low profile deck design-30cm high
  •  Dimensions from 6x3m up to 24x3m
  •  Modular panels made of U or I steel beams with thickness 6/8mm
  •  Rolling surface composed of steel plate with high thickness 8/10/12/14mm
  •  Skidproof design for surface platform (optional)
  •  Easy access to load cells and junction box through removable access hatches on the surface platform
  •  High precision compression load cells, bridge type IP68 digital ZEMIC model with CE & OMIL certificate
  •  Finishing in industrial epoxy paint colour
  •  Suitable for an intensive usage.

Weighbridge technical parameter
Plate Material Q235 carbon steel, 8/10/12mm steel plate is optional
Indicator/Display Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H
Load Cells Keli or Zemic bridge type digital load cells
Display Designators On/Off, Zero, Tare, kg/lb.
Transmission Distance RS232C≤30m
Power Supply Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH
Junction box Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems
Signal cable 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate
Color Standard color

AC/DC Power Supply Industrial Truck Scales U Beam Structure Digital 100 Ton Weighbridge

AC/DC Power Supply Industrial Truck Scales U Beam Structure Digital 100 Ton Weighbridge

AC/DC Power Supply Industrial Truck Scales U Beam Structure Digital 100 Ton Weighbridge

Recommended dimension for KEDA truck scale platform
Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7 √ √ 1x20'GP
3*9 √ √ √ √ √ 1x20'GP
3*12 √ √ √ √ √ √ 1x20'GP
3*14 √ √ √ √ √ √ 1x20'GP
3*16 √ √ √ √ √ 1x20'GP
3*18 √ √ √ √ √ 1x20'GP
3*20 √ √ √ √ 1x40'GP
3*22 √ √ √ 1x40'GP
3*24 √ √ 1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.
