Competitive Price Horizontal Diesel Natural Gas Fired Industrial Thermal Oil Boilers Supplier In China

YY(Q)W series gas oil fired hot oil boiler is packed and full automatic thermal oil boiler; adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ^350°C. After boiler arriving at users' site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

This thermal oil boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

Technical parameters

Main features of industrial thermal oil boiler

(1) High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

(2) Durable Coil Heater adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes' working life more than 17years.

(3) Automatic Safe Operation: Full automatic PLC ON/OFF controller; free settable thermal operation temperature and working time, automatic temperature control, automatic over-pressure/ over temperature interlock chain stop protection, visible system's working states (burner's states, system working pressure/ oil temperature) on screen etc.

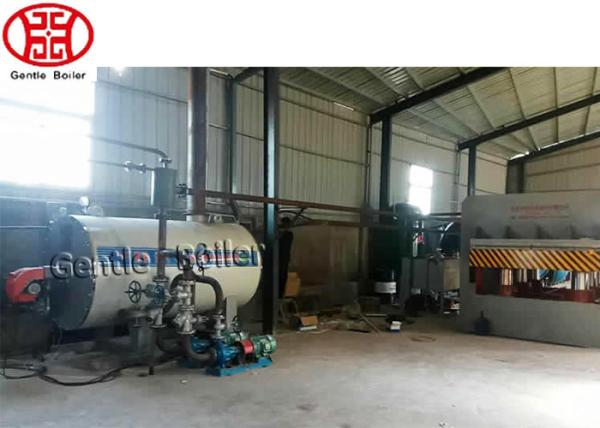

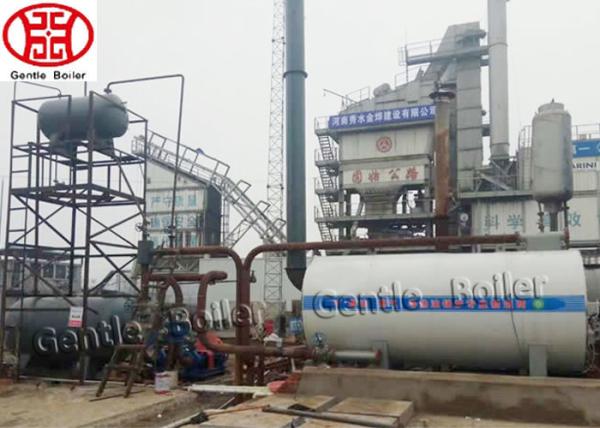

Installation

Scope of application:
1. Chemical industry - oleochemical, polymerization industry, reaction tank, distillation, concentration.
2, plastic industry - plastic guns, extrusion stereotypes.
3, textile industry - resin setting machine, dyeing machine, drying room, high temperature machine, roller machine.
4, the rubber industry - rubber vulcanization heating.
5, food industry - cooking, drying, vegetable oil refining.
6. Forest industry--heating and setting of splint, Pauli board and fiberboard.
7, paper industry - multi-layer cardboard packaging, drying, drying.
8. Others - heating of metal plating bath, paint condensation, drying, distillation, reduction, concentration, dehydration, and melting of asphalt in the pharmaceutical industry.
